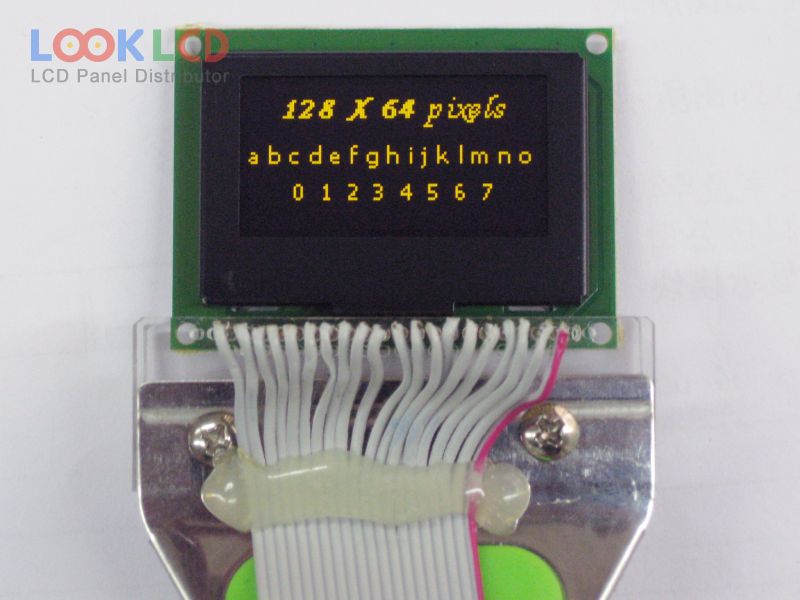

| Artikelnummer | HGS128647-Y-EH-LV |
| Marke | Other |
| Größe | 1.54 |
| Anwendung | IA |
| Auflösung | 128×64 |
| Komposition | OLED |
| Helligkeit | 150 |
| CR | 2000:1 |
| Farben | Mono(Yellow) |
| Hintergrundbeleuchtung | self |
| Schnittstelle | CPU/SPI/I²C |
| Panel-Marke | TSINGTEK |
| Panel-Modell | HGS128647-Y-EH-LV |
| Plattentyp | PM-OLED , OLED |
| Panelgröße | 1.54 inch |
| Auflösung | 128×64 |
| aktiver Bereich | 35.056×17.52 mm |
| Umriss | 54×39.5×8.5 mm |
| Oberfläche | |
| Helligkeit | 150 cd/m² (Typ.) |
| Kontrastverhältnis | 2000 : 1 (Min.) |
| Farben anzeigen | Mono(Yellow) |
| Blickwinkel | 80/80/80/80 (Min.)(L/R/U/D) |
| Treiber-IC | Built-in SSD1305 |
| Signalschnittstelle | 8-bit 6800/8080 parallel, 4-wire SPI, I²C, 20 pins |
| Eingangsspannung | 3.3V (Typ.) |
| rohs: | |
| Anwendung | IA |
