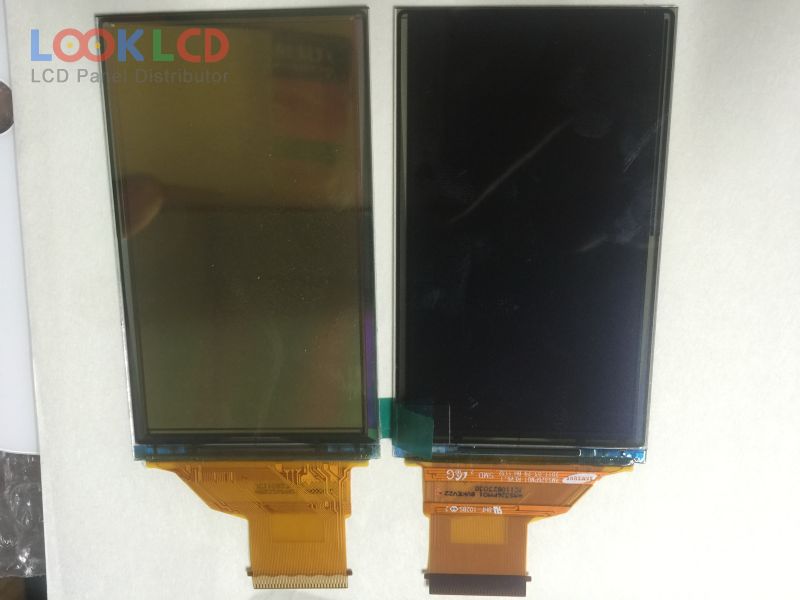

| Artikelnummer | AMS326PM01 |
| Marke | Samsung |
| Größe | 3.3 |
| Anwendung | MPH |
| Auflösung | 854×480 |
| Komposition | OLED |
| Helligkeit | 300 |
| CR | 10000:1 |
| Farben | 16.7M |
| Hintergrundbeleuchtung | self |
| Schnittstelle | TTL |
| Panel-Marke | SAMSUNG SMD |
| Panel-Modell | AMS326PM01 |
| Plattentyp | AM-OLED , OLED |
| Panelgröße | 3.3 inch |
| Auflösung | 854RG(BG)×480 , FWVGA |
| aktiver Bereich | 72.16×40.56 mm |
| Umriss | 80.56×47.36×0.86 mm |
| Oberfläche | Glare (Haze 0%), Hard coating |
| Helligkeit | 300 cd/m² (Typ.) |
| Kontrastverhältnis | 10000 : 1 (Typ.) |
| Farben anzeigen | 16.7M (8-bit), CIE1931106% |
| Blickwinkel | 80/80/80/80 (Typ.)(CR≥200)(L/R/U/D) |
| Frequenz | 60Hz |
| Treiber-IC | Built-in D53E6EA8805 |
| Signalschnittstelle | Parallel RGB (1 ch, 8-bit) + SPI, 61 pins |
| Eingangsspannung | 1.8/3.0/3.0V (Typ.)(VCCIO1/VCCIO2/VCI) |
| Anwendung | MPH |
| AMS320FH01-0 | Samsung | 3.2 | 240×400 |
| AMS320FS03 | Samsung | 3.2 | 320×480 |
| AMS326PM01 | Samsung | 3.3 | 854×480 |
| BV055FHM-N00 | BOE | 5.5 | 1080×1920 |
| CM546B1-002 | CSOT | 5.5 | 1080×1920 |
| H335VVN01.0 | AUO | 3.4 | 480×854 |
| LH350H02-FD02 | LG Display | 3.5 | 320×480 |
| LH450WX3-SD01 | LG Display | 4.5 | 720×1280 |
| LMS220GF08 | Samsung | 2.2 | 240×320 |
| LS063K3SX54 | SHARP | 6.3 | 720×1280 |
| OEL9M0039-W-E | Other | 1.5 | 128×128 |
| TM018FDZ02 | Tianma | 1.8 | 128×160 |
| UG-2828GDEDF11 | WiseChip | 1.5 | 128×128 |
