| Artikelnummer | V260B1-L02 |
| Marke | Innolux |
| Größe | 26.0 |
| Anwendung | LCTV |
| Auflösung | 1366×768 |
| Komposition | LCM |
| Helligkeit | 450 |
| CR | 800:1 |
| Farben | 16.2M |
| Hintergrundbeleuchtung | CCFL |
| Schnittstelle | RSDS |
| Panel-Marke | CMO |
| Panel-Modell | V260B1-L02 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 26.0 inch |
| Auflösung | 1366(RGB)×768 , WXGA |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 575.769×323.712 mm |
| Umriss | 626×373 mm |
| Oberfläche | |
| Helligkeit | 450 cd/m² (Typ.) |
| Kontrastverhältnis | 800:1 (Typ.) |
| Farben anzeigen | 16.2M (6-bit + FRC), CIE193172% |
| Reaktionszeit | 3/5 (Typ.)(Tr/Td) |
| Blickwinkel | 80/80/80/70 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 4 pcsCCFLWithout Driver |

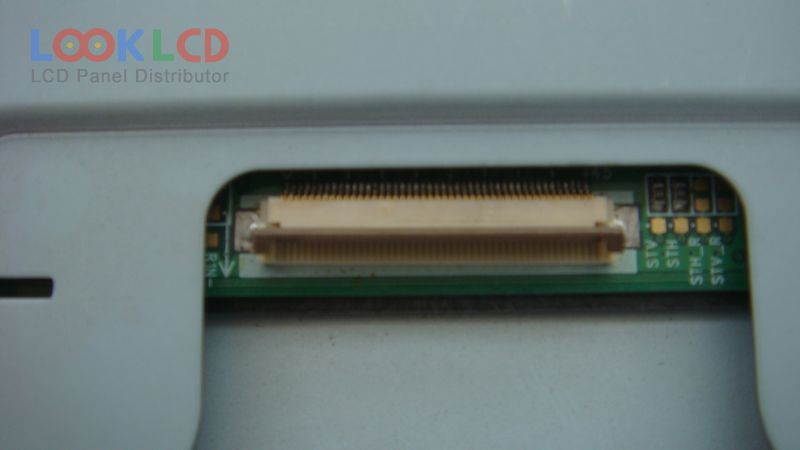

| Signalschnittstelle | RSDS (1 Channel), 45 pins |
| Eingangsspannung | 5.3.3/5.0V (Typ.)(VDD/VIN5) |
| Anwendung | LCTV |
