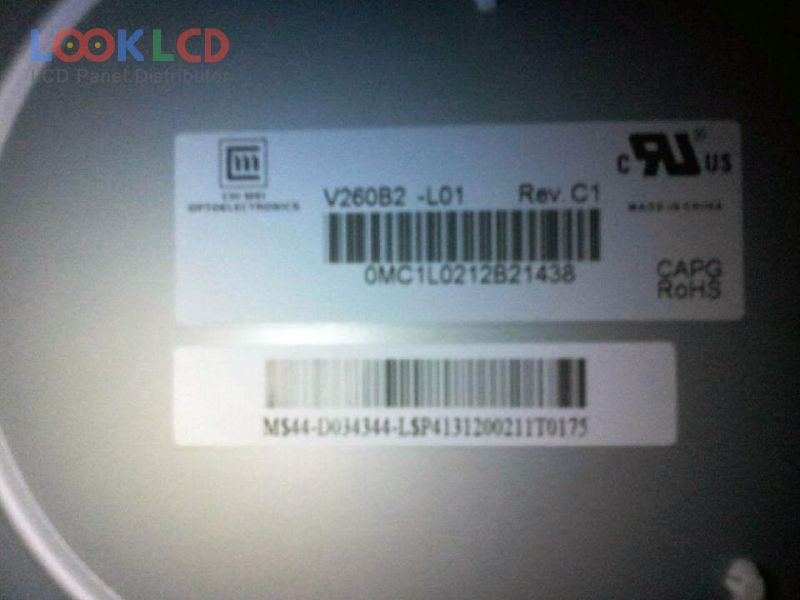

| Artikelnummer | V260B2-L01 |
| Marke | Innolux |
| Größe | 26.0 |
| Anwendung | LCTV |
| Auflösung | 1366×768 |
| Komposition | LCM |
| Helligkeit | 450 |
| CR | 800:1 |
| Farben | 16.7M |
| Hintergrundbeleuchtung | CCFL |
| Schnittstelle | LVDS |
| Panel-Marke | CMO |
| Panel-Modell | V260B2-L01 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 26.0 inch |
| Auflösung | 1366(RGB)×768 , WXGA |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 575.769×323.712 mm |
| Umriss | 626×373 mm |
| Oberfläche | Antiglare (Haze 25%), Hard coating (3H) |
| Helligkeit | 450 cd/m² (Typ.) |
| Kontrastverhältnis | 800:1 (Typ.) |
| Farben anzeigen | 16.7M (6-bit + Hi-FRC), CIE193172% |
| Reaktionszeit | 1.3/3.7 (Typ.)(Tr/Td) |
| Blickwinkel | 80/80/80/70 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 4 pcsCCFLEmbedded (Inverter) |
| Signalschnittstelle | LVDS (1 ch, 8-bit), 30 pins |
| Eingangsspannung | 12.0V (Typ.) |
| Anwendung | LCTV |
| V260B1-L01 | Innolux | 26.0 | 1366×768 |
| V260B1-L02 | Innolux | 26.0 | 1366×768 |
| V260B1-L03 | Innolux | 26.0 | 1366×768 |
| V260B1-L11 | Innolux | 26.0 | 1366×768 |
| V260B2-L01 | Innolux | 26.0 | 1366×768 |
| V260B2-L04 | Innolux | 26.0 | 1366×768 |
| V260B3-L01 | Innolux | 26.0 | 1366×768 |
| V260B3-L07 | Innolux | 26.0 | 1366×768 |
| V260B3-LE1 | Innolux | 26.0 | 1366×768 |
| V260B3-LE2 | Innolux | 26.0 | 1366×768 |
| LC320DXE-SFR1 | LG Display | 31.5 | 1366×768 |
| LC320WXN-SCA1 | LG Display | 31.5 | 1366×768 |
| LC320WXN-SCA4 | LG Display | 31.5 | 1366×768 |
| LC420EUH-PEF1 | LG Display | 42 | 1920×1080 |
| LC420EUN-SCV1 | LG Display | 42 | 1920×1080 |
| LC550EUE-SEM1 | LG Display | 55 | 1920×1080 |
| LTA320WT-L08 | Samsung | 31.5 | 1366×768 |
| T370HW03 VD | AUO | 37 | 1920×1080 |
| T550QVD01.0 | AUO | 55 | 3840×2160 |
| V650HP1-ME2 | Innolux | 65 | 1920×1080 |
