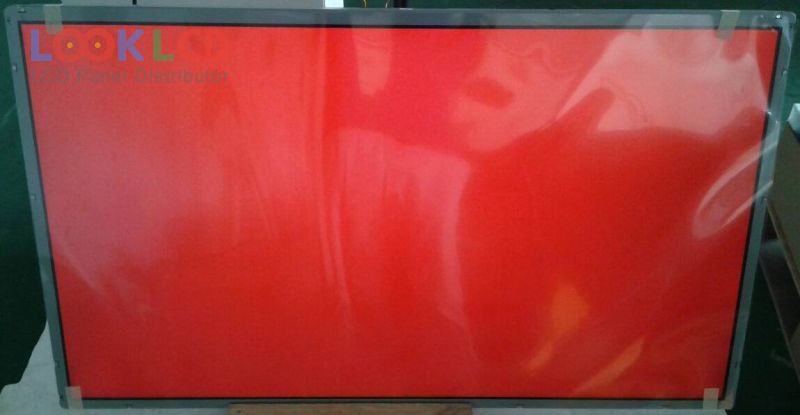

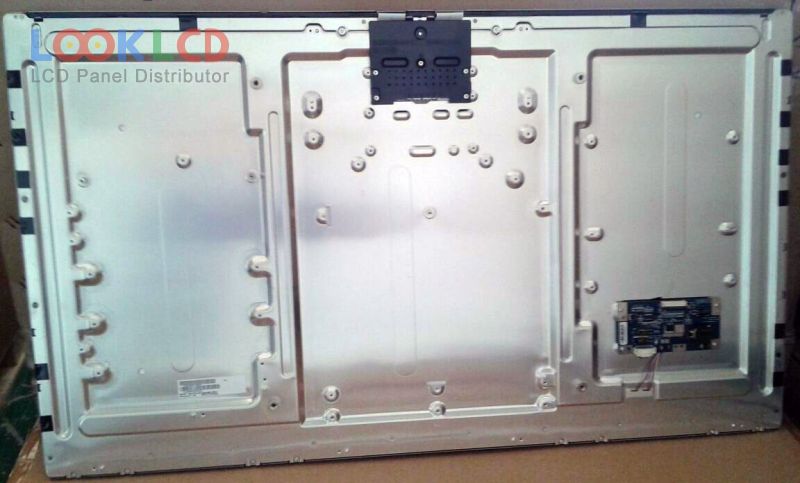

| Artikelnummer | T420HW08 V5 |
| Marke | AUO |
| Größe | 42 |
| Anwendung | LCTV |
| Auflösung | 1920×1080 |
| Komposition | LCM |
| Helligkeit | 400 |
| CR | 4000:1 |
| Farben | 16.7M |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | LVDS |
| Panel-Marke | AUO |
| Panel-Modell | T420HW08 V5 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 42 inch |
| Auflösung | 1920(RGB)×1080 , FHD |
| Anzeigemodus | AMVA3, Normally Black, Transmissive |
| aktiver Bereich | 930.24×523.26 mm |
| Umriss | 968.4×564×28.7 mm |
| Oberfläche | Antiglare (Haze 2%), Hard coating (3H) |
| Helligkeit | 400 cd/m² (Typ.) |
| Kontrastverhältnis | 4000:1 (Typ.) |
| Farben anzeigen | 16.7M (8-bit), CIE193172% |
| Reaktionszeit | 6.5 (Typ.)(G to G) |
| Blickwinkel | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | WLEDEmbedded (LED Driver) |
| Signalschnittstelle | LVDS (2 ch, 8-bit), 51 pins |
| Eingangsspannung | 12.0V (Typ.) |
| Anwendung | LCTV |
