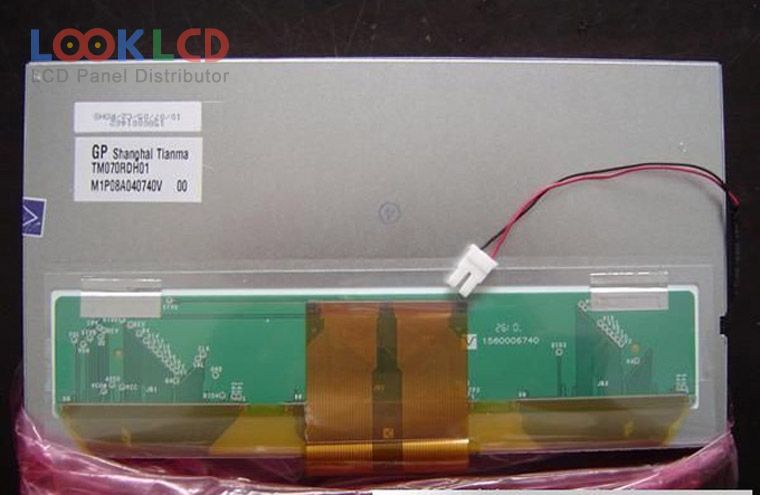

| Artikelnummer | TM070RDH01 |
| Marke | Tianma |
| Größe | 7.0 |
| Anwendung | CNS |
| Auflösung | 800×480 |
| Komposition | LCM |
| Helligkeit | 400 |
| CR | 400:1 |
| Farben | 262K |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | TTL |
| Panel-Marke | TIANMA |
| Panel-Modell | TM070RDH01 1 Compatible model |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 7.0 inch |
| Auflösung | 800(RGB)×480 , WVGA |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 157.2×82.32 mm |
| Umriss | 167×93×6.1 mm |
| Oberfläche | Antiglare |
| Helligkeit | 400 cd/m² (Typ.) |
| Kontrastverhältnis | 400:1 (Typ.) |
| Farben anzeigen | 262K (6-bit), CIE193150% |
| Reaktionszeit | 25 (Typ.)(Tr+Td) |
| Blickwinkel | 70/70/60/70 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 3S10PWLEDWithout Driver |
| Signalschnittstelle | TTL (1 ch, 6-bit), 60 pins |
| Eingangsspannung | 3.3/3.3/9.84/19.0/-7.0V (Typ.)(VCC/VDD1/VDD2/VGG/VEE) |
| Anwendung | CNS |
