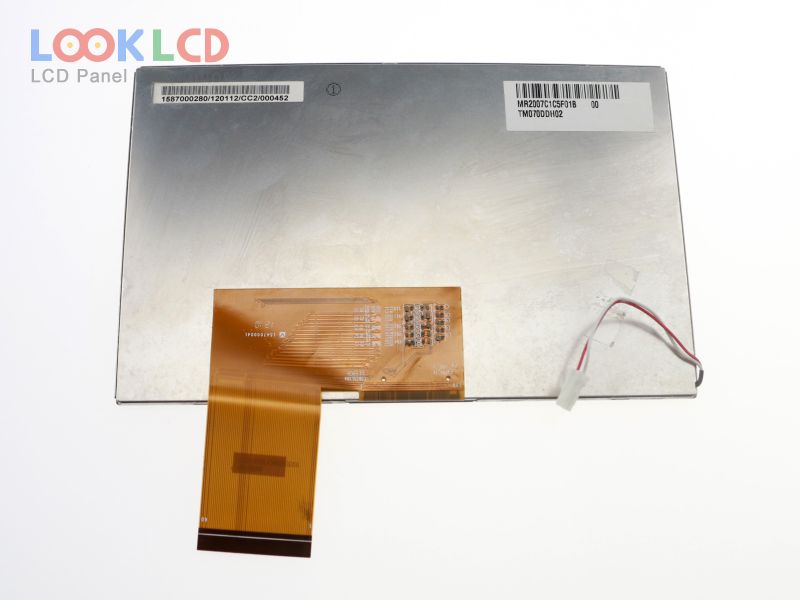

| Artikelnummer | TM070DDH02 |
| Marke | Tianma |
| Größe | 7.0 |
| Anwendung | MP4 |
| Auflösung | 1024×600 |
| Komposition | LCM |
| Helligkeit | 250 |
| CR | 500:1 |
| Farben | 16.7M |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | TTL |
| Panel-Marke | AVIC |
| Panel-Modell | TM070DDH02 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 7.0 inch |
| Auflösung | 1024(RGB)×600 , WSVGA |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 153.6×90 mm |
| Umriss | 165.75×105.39×3.7 mm |
| Oberfläche | Antiglare |
| Helligkeit | 250 cd/m² (Typ.) |
| Kontrastverhältnis | 500:1 (Typ.) |
| Farben anzeigen | 16.7M (8-bit), CIE193150% |
| Reaktionszeit | 20 (Typ.)(Tr+Td) |
| Blickwinkel | 75/75/70/75 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 3S6PWLEDWithout Driver |
| Signalschnittstelle | Parallel RGB (1 ch, 8-bit), 60 pins |
| Eingangsspannung | 3.3/11/20/-6.8V (Typ.)(VCC/AVDD/VGH/VGL) |
| Anwendung | MP4 |
