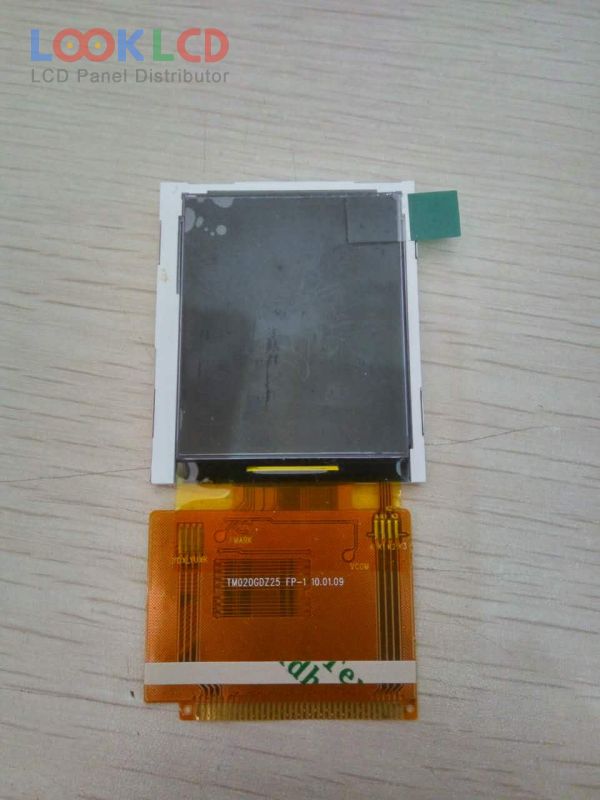

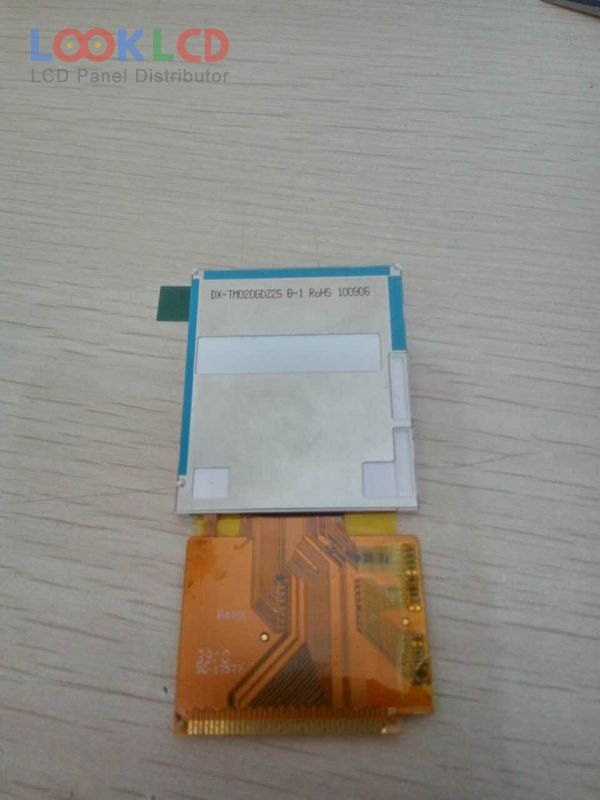

| Artikelnummer | TM020GDZ25 |
| Marke | Tianma |
| Größe | 2.0 |
| Anwendung | MPH |
| Auflösung | 176×220 |
| Komposition | LCM |
| Helligkeit | |
| CR | |
| Farben | 262K |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | |
| Panel-Marke | TIANMA |
| Panel-Modell | TM020GDZ25 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 2.0 inch |
| Auflösung | 176(RGB)×220 , QCIF+ |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 31.68×39.6 mm |
| Oberfläche | |
| Helligkeit | |
| Kontrastverhältnis | |
| Farben anzeigen | 262K , CIE193140% |
| Reaktionszeit | 30/30 (Typ.)(Tr/Td) |
| Blickwinkel | 50/50/25/50 (Typ.)(CR≥10)(L/R/U/D) |
| Lampentyp | WLED |
| Anwendung | MPH |
