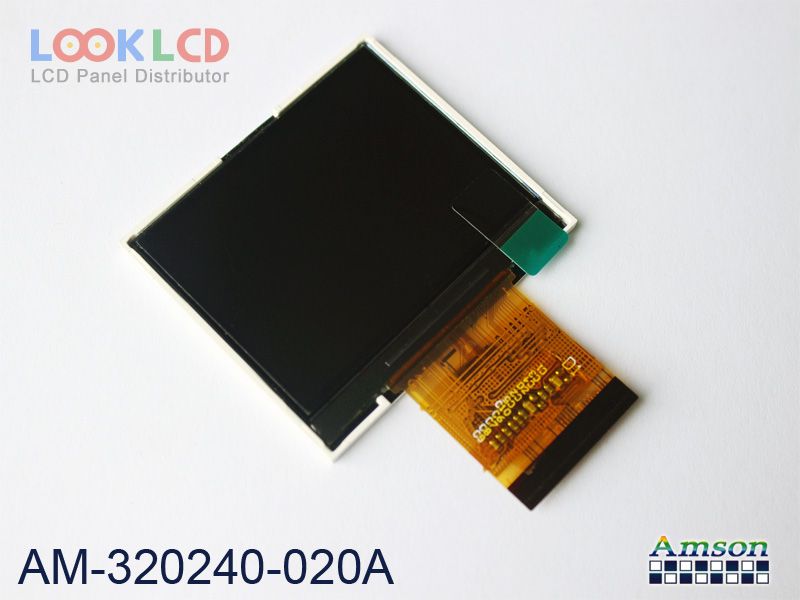

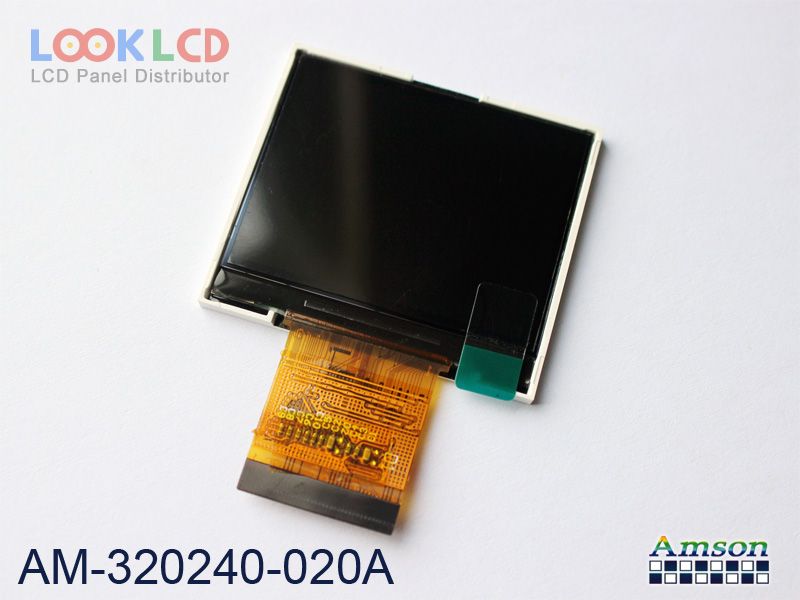

| Artikelnummer | AM-320240-020A |
| Marke | Other |
| Größe | 2.0 |
| Anwendung | HHP |
| Auflösung | 320×240 |
| Komposition | LCM |
| Helligkeit | |
| CR | |
| Farben | 262K |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | Serial RGB |
| Panel-Marke | Amson |
| Panel-Modell | AM-320240-020A |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 2.0 inch |
| Auflösung | 320(RGB)×240 , QVGA |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 40.8×30.6 mm |
| Umriss | 46.1×40.96×2.7 mm |
| Oberfläche | |
| Helligkeit | |
| Kontrastverhältnis | |
| Farben anzeigen | 262K (6-bit) |
| Reaktionszeit | |
| Blickwinkel | |
| Lampentyp | WLEDWithout Driver |
| Signalschnittstelle | Serial RGB (6-bit) + SPI, 40 pins |
| Eingangsspannung | 2.8/2.8V (Typ.)(IOVCC/VCI) |
| Anwendung | HHP |
