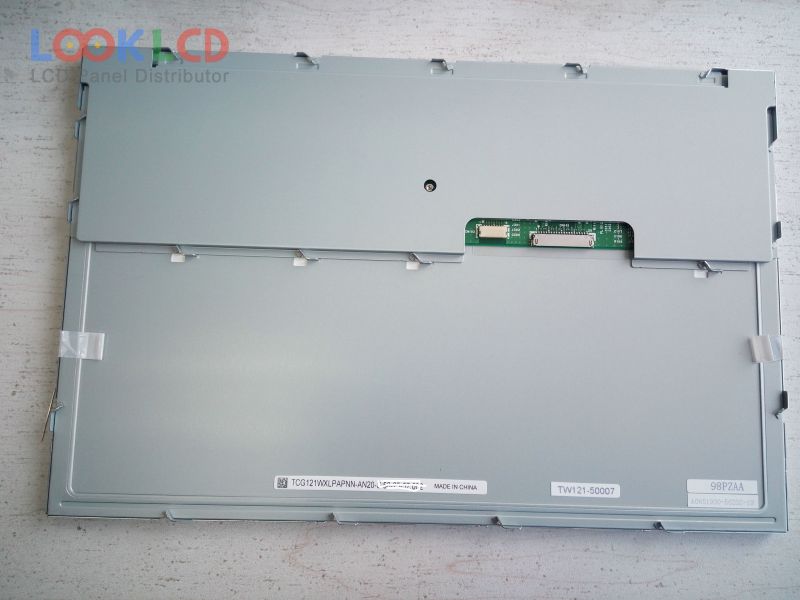

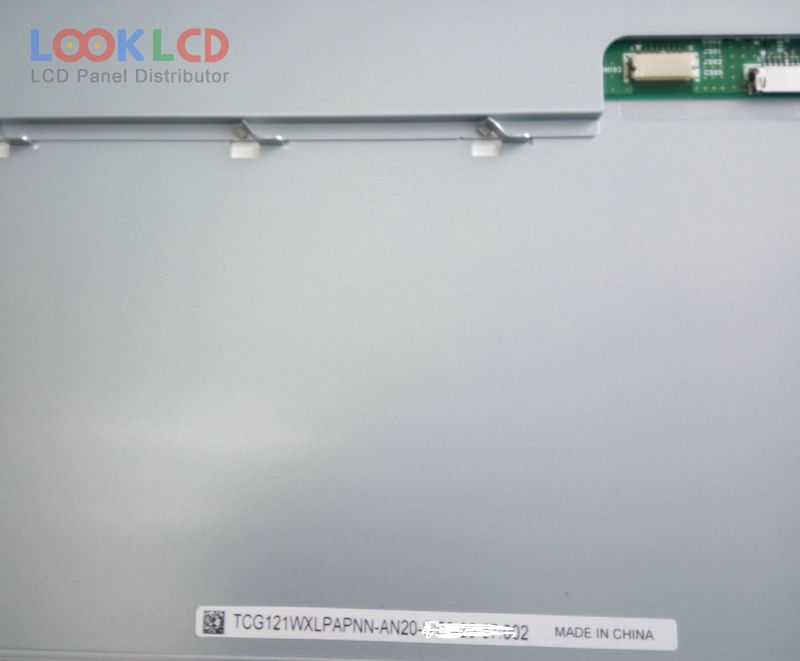

| Artikelnummer | TCG121WXLPAPNN-AN20 |
| Marke | Kyocera |
| Größe | 12.1 |
| Anwendung | IA |
| Auflösung | 1280×800 |
| Komposition | LCM |
| Helligkeit | 500 |
| CR | 750:1 |
| Farben | 16.7M |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | LVDS |
| Panel-Marke | Kyocera |
| Panel-Modell | TCG121WXLPAPNN-AN20 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 12.1 inch |
| Auflösung | 1280(RGB)×800 , WXGA |
| Anzeigemodus | AWV, Normally Black, Transmissive |
| aktiver Bereich | 261.12×163.2 mm |
| Umriss | 277.7×182.5 mm |
| Oberfläche | Antiglare |
| Helligkeit | 500 cd/m² (Typ.) |
| Kontrastverhältnis | 750:1 (Typ.) |
| Farben anzeigen | 16.7M (6-bit + Hi-FRC) |
| Reaktionszeit | 18/12 (Typ.)(Tr/Td) |
| Blickwinkel | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | WLEDEmbedded (LED Driver) |
| Signalschnittstelle | LVDS (1 ch, 8-bit), 20 pins |
| Eingangsspannung | 3.3V (Typ.) |
| Anwendung | IA |
