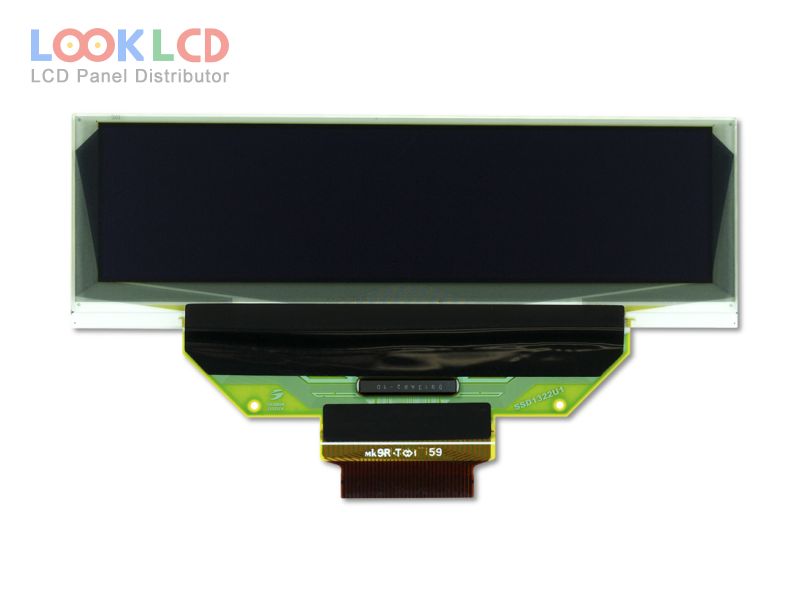

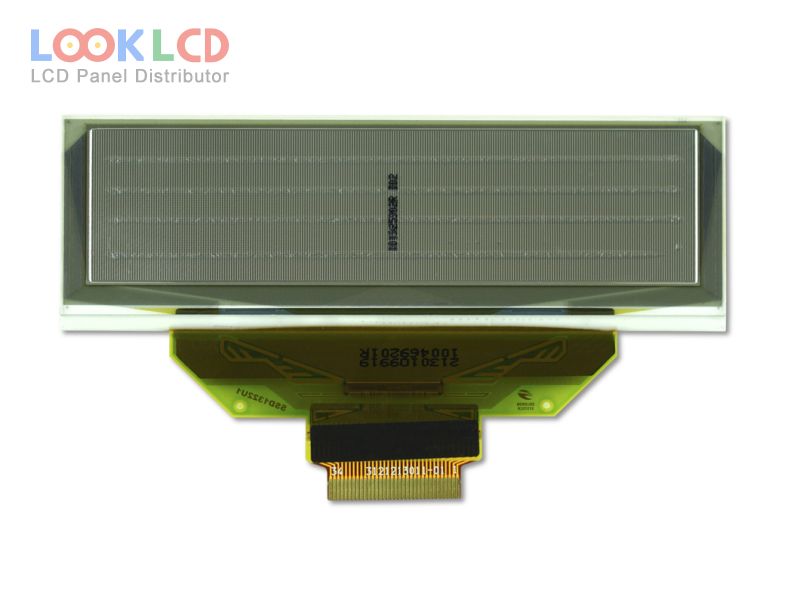

| Artikelnummer | RGS32256064WH002 |
| Marke | RiTdisplay |
| Größe | 3.2 |
| Anwendung | IA |
| Auflösung | 256×64 |
| Komposition | OLED |
| Helligkeit | 70 |
| CR | 2000:1 |
| Farben | Mono(White) |
| Hintergrundbeleuchtung | self |
| Schnittstelle | CPU/SPI |
| Panel-Marke | RiTdisplay |
| Panel-Modell | RGS32256064WH002 |
| Plattentyp | PM-OLED , OLED |
| Panelgröße | 3.2 inch |
| Auflösung | 256×64 |
| aktiver Bereich | 79.084×19.756 mm |
| Umriss | 87.4×28.5×2.11 mm |
| Oberfläche | Antiglare |
| Helligkeit | 70 cd/m² (Typ.) |
| Kontrastverhältnis | 2000 : 1 (Min.) |
| Farben anzeigen | Mono(White) (1-bit) |
| Blickwinkel | 80/80/80/80 (Min.)(L/R/U/D) |
| Frequenz | 105Hz |
| Treiber-IC | COF Built-in SSD1322 |
| Signalschnittstelle | 8-bit 6800/8080 parallel, 3/4-wire SPI, 34 pins |
| Eingangsspannung | 14.5/2.8V (Typ.)(VCC/VCI) |
| Anwendung | IA |
