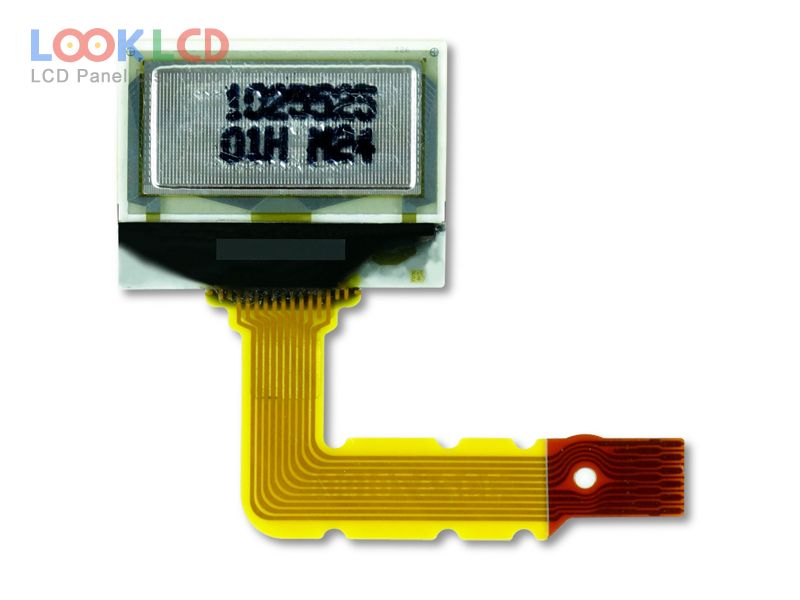

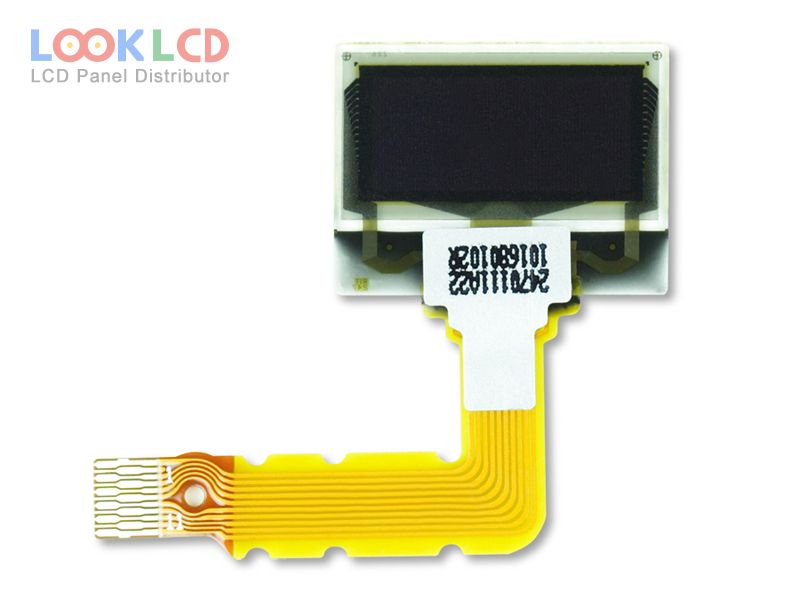

| Artikelnummer | RGS10096096WR001 |
| Marke | RiTdisplay |
| Größe | 0.96 |
| Anwendung | IA |
| Auflösung | 96×96 |
| Komposition | OLED |
| Helligkeit | 100 |
| CR | 2000:1 |
| Farben | Mono(White) |
| Hintergrundbeleuchtung | self |
| Schnittstelle | CPU |
| Panel-Marke | RiTdisplay |
| Panel-Modell | RGS10096096WR001 |
| Plattentyp | PM-OLED , OLED |
| Panelgröße | 0.96 inch |
| Auflösung | 96×96 |
| aktiver Bereich | 17.26×17.26 mm |
| Umriss | 24×25.7×1.31 mm |
| Oberfläche | Antiglare |
| Helligkeit | 100 cd/m² (Typ.) |
| Kontrastverhältnis | 2000 : 1 (Min.) |
| Farben anzeigen | Mono(White) (1-bit) |
| Blickwinkel | 80/80/80/80 (Min.)(CR≥10)(L/R/U/D) |
| Frequenz | 105Hz |
| Treiber-IC | COG Built-in SSD1327 |
| Signalschnittstelle | 8-bit 8080 parallel, 21 pins |
| Eingangsspannung | 15/2.8V (Typ.)(VCC/VDD) |
| Anwendung | IA |
