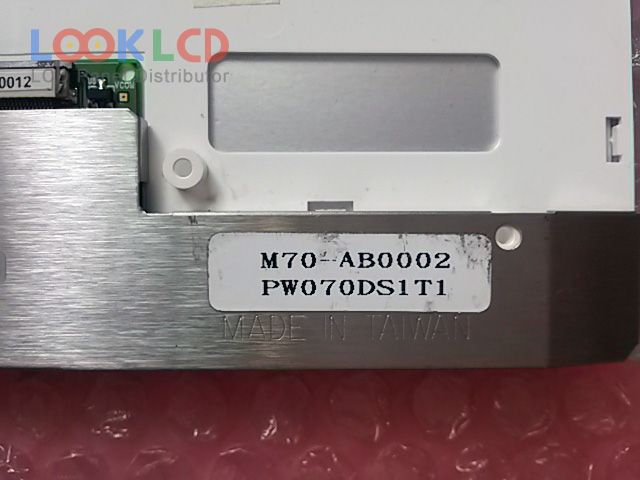

| Artikelnummer | PW070DS1T1 |
| Marke | E Ink |
| Größe | 7.0 |
| Anwendung | VDP |
| Auflösung | 480×234 |
| Komposition | LCM |
| Helligkeit | 350 |
| CR | 150:1 |
| Farben | |
| Hintergrundbeleuchtung | CCFL |
| Schnittstelle | Analog |
| Panel-Marke | PVI |
| Panel-Modell | PW070DS1T1 3 Compatible model |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 7.0 inch |
| Auflösung | 480(RGB)×234 |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 154.08×87.05 mm |
| Umriss | 166.9×101.8 mm |
| Oberfläche | Antiglare, Hard coating |
| Helligkeit | 350 cd/m² (Typ.) |
| Kontrastverhältnis | 150:1 (Typ.) |
| Farben anzeigen | |
| Reaktionszeit | 30/50 (Max.)(Tr/Td) |
| Blickwinkel | 55/55/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| Lampentyp | 1 pcsCCFLWithout Driver |
| Signalschnittstelle | Analog RGB + Composite Video (NTSC/PAL), 30 pins |
| Eingangsspannung | 3.3/5.0/17/-12V (Typ.)(VCC/VDD/VGON/VGOFF) |
| rohs: | |
