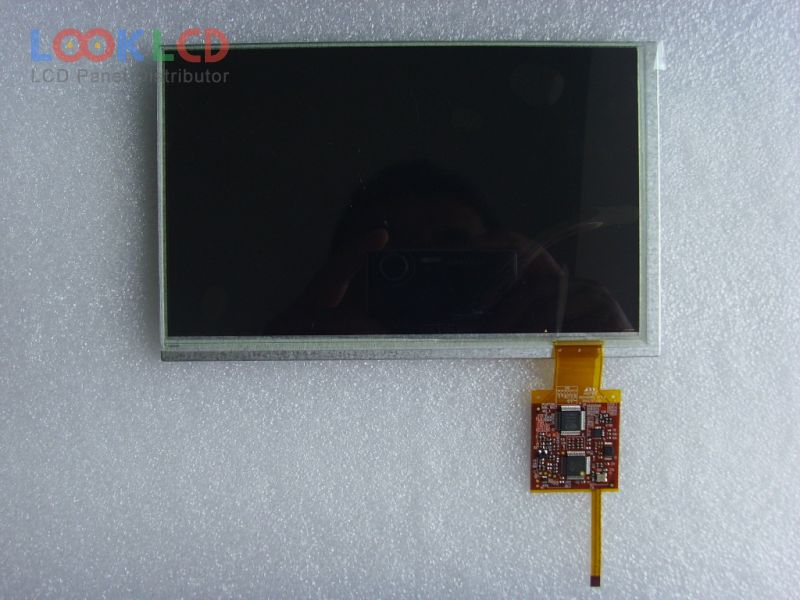

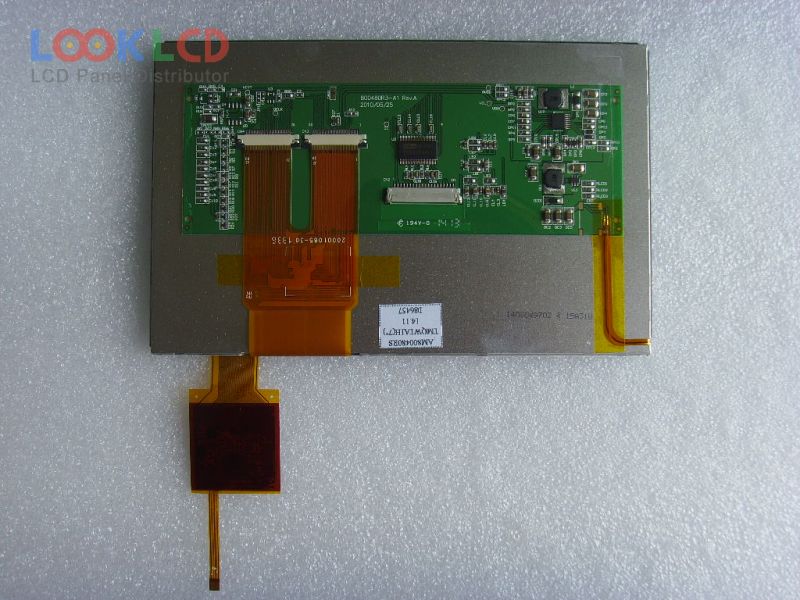

| Artikelnummer | AM-800480RSTMQW-TA1H |
| Marke | AMPIRE |
| Größe | 7.0 |
| Anwendung | CNS |
| Auflösung | 800×480 |
| Komposition | LCM |
| Helligkeit | 400 |
| CR | 400:1 |
| Farben | 262K |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | LVDS |
| Panel-Marke | AMPIRE |
| Panel-Modell | AM-800480RSTMQW-TA1H |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 7.0 inch |
| Auflösung | 800(RGB)×480 , WVGA |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 152.4×91.44 mm |
| Umriss | 165×104.44×7.61 mm |
| Oberfläche | |
| Helligkeit | 400 cd/m² (Typ.) |
| Kontrastverhältnis | 400:1 (Typ.) |
| Farben anzeigen | 262K (6-bit) |
| Reaktionszeit | 5/11 (Typ.)(Tr/Td) |
| Blickwinkel | 70/70/70/60 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 3S10PWLEDWithout Driver |
| Signalschnittstelle | LVDS (1 ch, 6-bit), 20 pins |
| Eingangsspannung | 3.3V (Typ.) |
| Anwendung | CNS |
