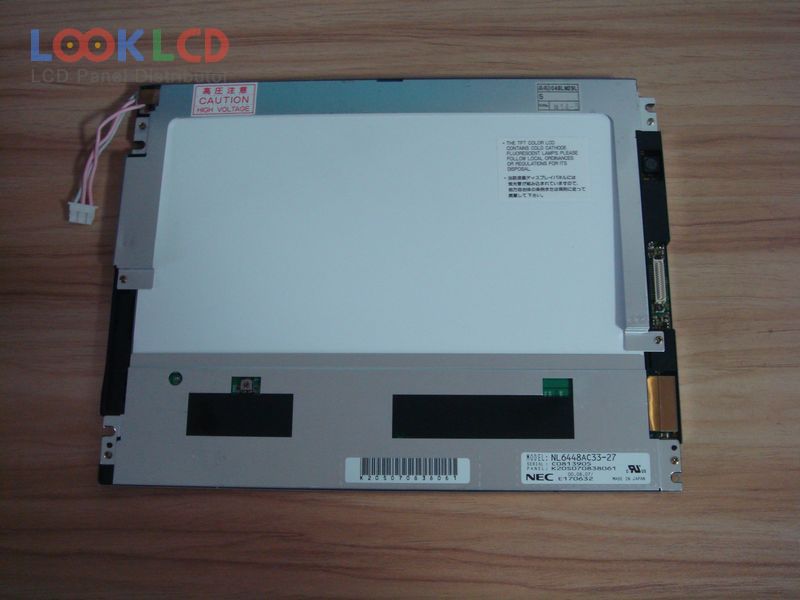

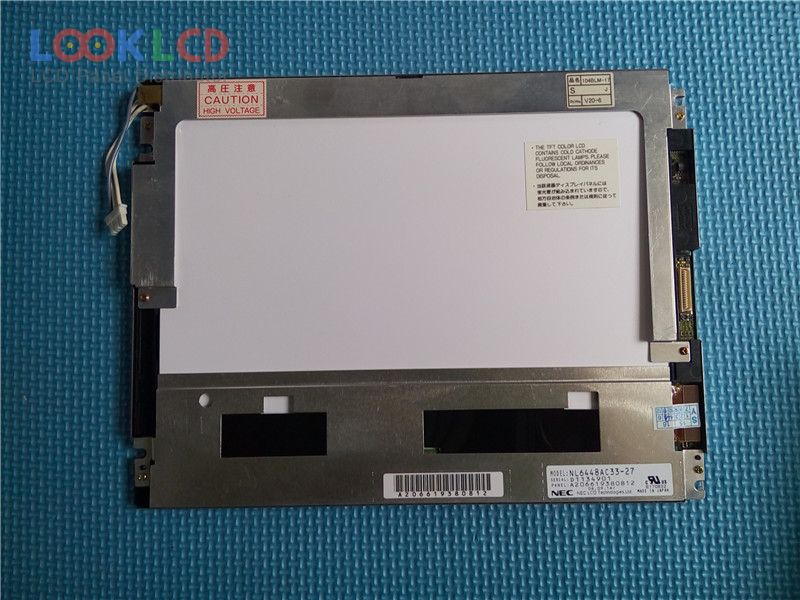

| Artikelnummer | NL6448AC33-27 |
| Marke | NLT |
| Größe | 10.4 |
| Anwendung | IA |
| Auflösung | 640×480 |
| Komposition | LCM |
| Helligkeit | 250 |
| CR | 300:1 |
| Farben | 262K |
| Hintergrundbeleuchtung | CCFL |
| Schnittstelle | TTL |
| Panel-Marke | NEC |
| Panel-Modell | NL6448AC33-27 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 10.4 inch |
| Auflösung | 640(RGB)×480 , VGA |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 211.2×158.4 mm |
| Umriss | 243×185.1×11.5 mm |
| Oberfläche | |
| Helligkeit | 250 cd/m² (Typ.) |
| Kontrastverhältnis | 300:1 (Typ.) |
| Farben anzeigen | 262K (6-bit), CIE193143% |
| Reaktionszeit | 15/60 (Typ.)(Tr/Td) |
| Blickwinkel | 50/50/50/35 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 2 pcsCCFLEmbedded (Inverter) |
| Signalschnittstelle | CMOS (1 ch, 6-bit), 31 pins |
| Eingangsspannung | 3.3/5.0V (Typ.) |
| Anwendung | IA |
