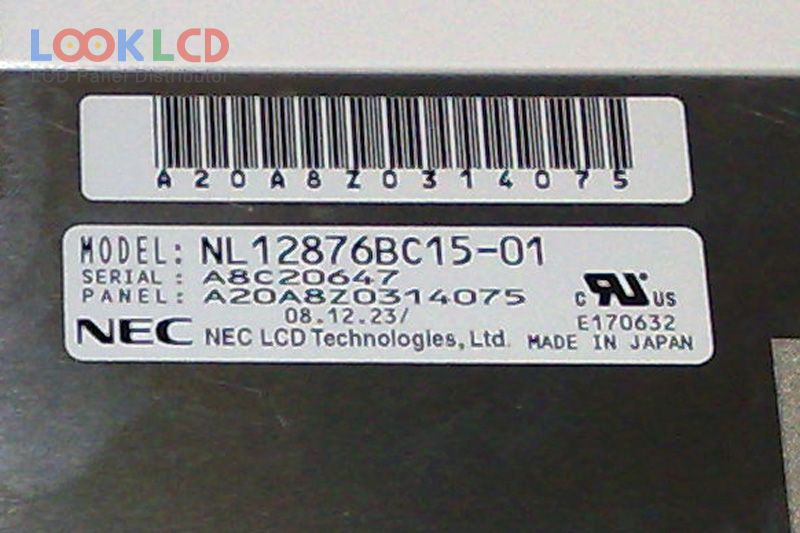

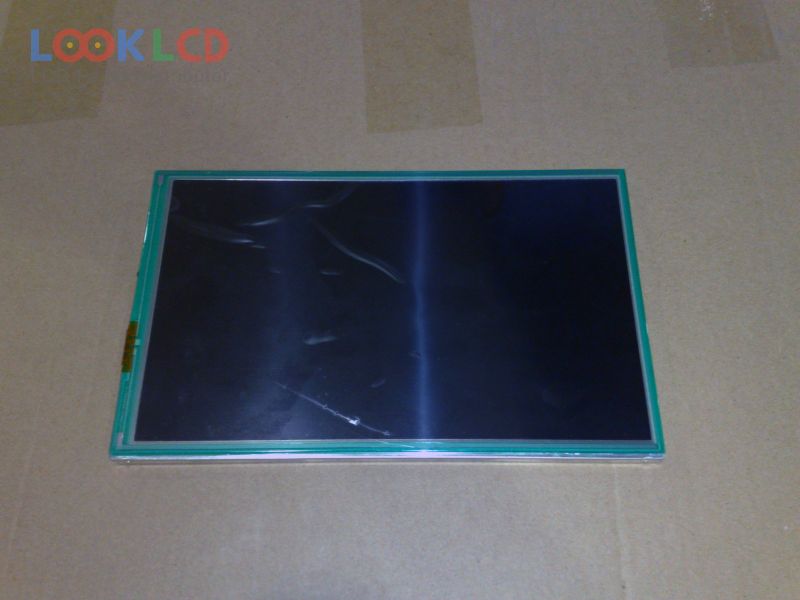

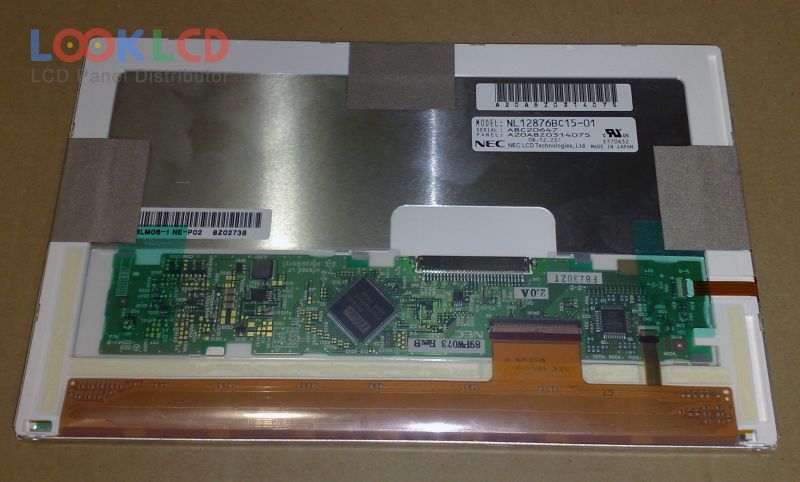

| Artikelnummer | NL12876BC15-01 |
| Marke | NLT |
| Größe | 8.9 |
| Anwendung | NBPC |
| Auflösung | 1280×768 |
| Komposition | LCM |
| Helligkeit | 280 |
| CR | 500:1 |
| Farben | 262K |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | LVDS |
| Panel-Marke | NEC |
| Panel-Modell | NL12876BC15-01 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 8.9 inch |
| Auflösung | 1280(RGB)×768 , WXGA |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 193.92×116.352 mm |
| Umriss | 209.2×130.3×7.7 mm |
| Oberfläche | Clear, Hard coating (3H) |
| Helligkeit | 280 cd/m² (Typ.) |
| Kontrastverhältnis | 500:1 (Typ.) |
| Farben anzeigen | 262K (6-bit), CIE193156% |
| Reaktionszeit | 6/2 (Typ.)(Tr/Td) |
| Blickwinkel | 45/45/20/40 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 11S3PWLEDWithout Driver |
| Signalschnittstelle | LVDS (1 ch, 6-bit), 30 pins |
| Eingangsspannung | 3.3V (Typ.) |
| Anwendung | NBPC |
