| Artikelnummer | NL12876AC39-01 |
| Marke | NLT |
| Größe | 23.0 |
| Anwendung | DMPC |
| Auflösung | 1280×768 |
| Komposition | LCM |
| Helligkeit | 450 |
| CR | 350:1 |
| Farben | 16.7M |
| Hintergrundbeleuchtung | CCFL |
| Schnittstelle | LVDS |
| Panel-Marke | NEC |

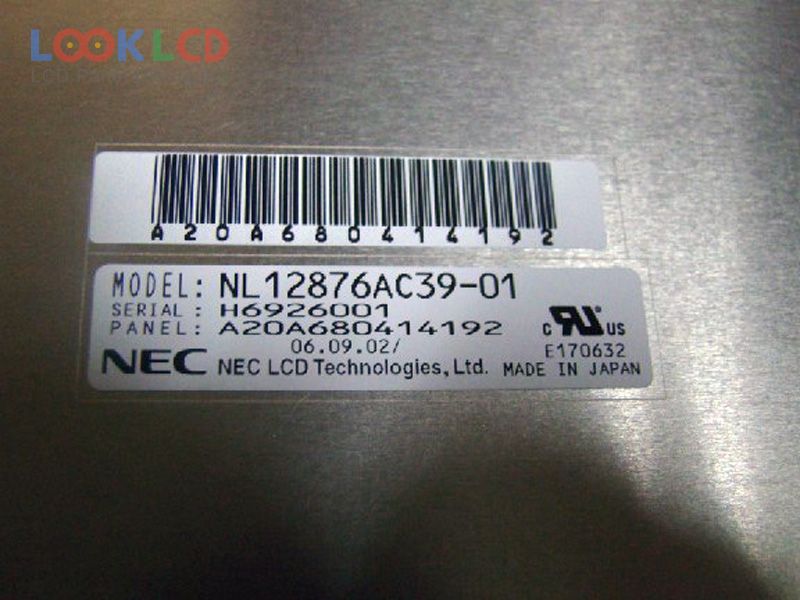

| Panel-Modell | NL12876AC39-01 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 23.0 inch |
| Auflösung | 1280(RGB)×768 , WXGA |
| Anzeigemodus | UA-SFT, Normally Black, Transmissive |
| aktiver Bereich | 501.12×300.672 mm |
| Umriss | 528×326 mm |
| Oberfläche | Hard coating (2H), Antireflection |
| Helligkeit | 450 cd/m² (Typ.) |
| Kontrastverhältnis | 350:1 (Typ.) |
| Farben anzeigen | 16.7M (8-bit), CIE193172% |
| Reaktionszeit | 10/13 (Typ.)(Tr/Td) |
| Blickwinkel | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 12 pcsCCFLEmbedded (Inverter) |
| Signalschnittstelle | LVDS (1 ch, 8-bit), 20 pins |
| Eingangsspannung | 5.0V (Typ.) |
| Anwendung | DMPC |
| G230HAN01.1 | AUO | 23.0 | 1920×1080 |
| LM230WF3-SLD1 | LG Display | 23.0 | 1920×1080 |
| LM230WF3-SSA1 | LG Display | 23.0 | 1920×1080 |
| LM230WF5-TLD1 | LG Display | 23.0 | 1920×1080 |
| NL12876AC18-03 | NLT | 10.6 | 1280×768 |
| NL12876AC18-03D | NLT | 10.6 | 1280×768 |
| NL12876AC39-01 | NLT | 23.0 | 1280×768 |
| NL12876BC15-01 | NLT | 8.9 | 1280×768 |
| NL12876BC26-25 | NLT | 15.3 | 1280×768 |
| NL12876BC26-28 | NLT | 15.3 | 1280×768 |
| HSD190ME13-D10 | HannStar | 19.0 | 1280×1024 |
| LM240WU8-SLD1 | LG Display | 24.0 | 1920×1200 |
| LTM170E4-P01 | Samsung | 17.0 | 1280×1024 |
| LTM184HL01 | Samsung | 18.4 | 1920×1080 |
| LTM185AT01 | Samsung | 18.5 | 1366×768 |
| M190MWW4 R2 | IVO | 19.0 | 1440×900 |
| M201UN03 V0 | AUO | 20.1 | 1600×1200 |
| M270H1-L01 | Innolux | 27.0 | 1920×1080 |
| MT190EN02 V.Y | Innolux | 19.0 | 1280×1024 |
| SVA156WX1-01TB | SVA-NEC | 15.6 | 1366×768 |
