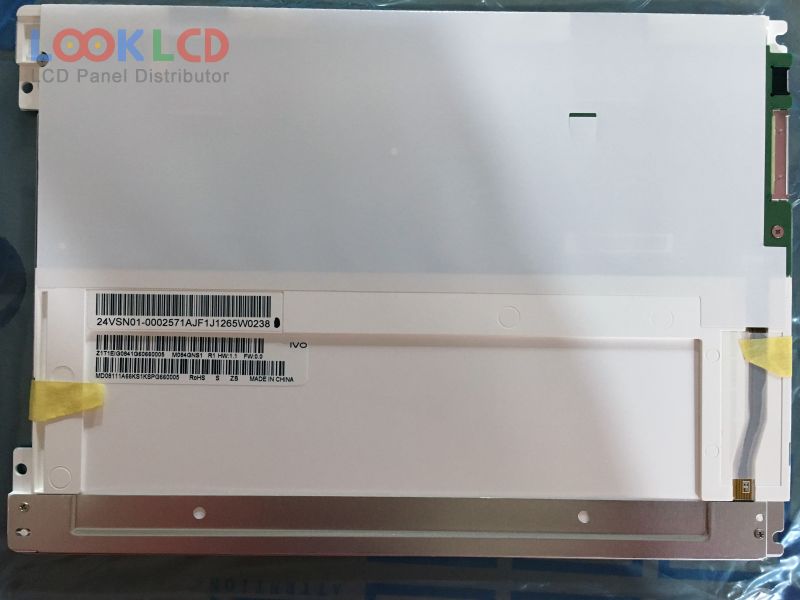

| Artikelnummer | M084GNS1 R1 |
| Marke | IVO |
| Größe | 8.4 |
| Anwendung | IA |
| Auflösung | 800×600 |
| Komposition | LCM |
| Helligkeit | 350 |
| CR | 600:1 |
| Farben | 262K/16.7M |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | LVDS |
| Panel-Marke | IVO |
| Panel-Modell | M084GNS1 R1 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 8.4 inch |
| Auflösung | 800(RGB)×600 , SVGA |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 170.4×127.8 mm |
| Umriss | 203×142.5 mm |
| Oberfläche | Antiglare |
| Helligkeit | 350 cd/m² (Typ.) |
| Kontrastverhältnis | 600:1 (Typ.) |
| Farben anzeigen | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193145% |
| Reaktionszeit | 16 (Typ.)(Tr+Td) |
| Blickwinkel | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 8S4PWLEDEmbedded (LED Driver) |
| Signalschnittstelle | LVDS (1 ch, 6/8-bit), 20 pins |
| Eingangsspannung | 3.3V (Typ.) |
| Anwendung | IA |
