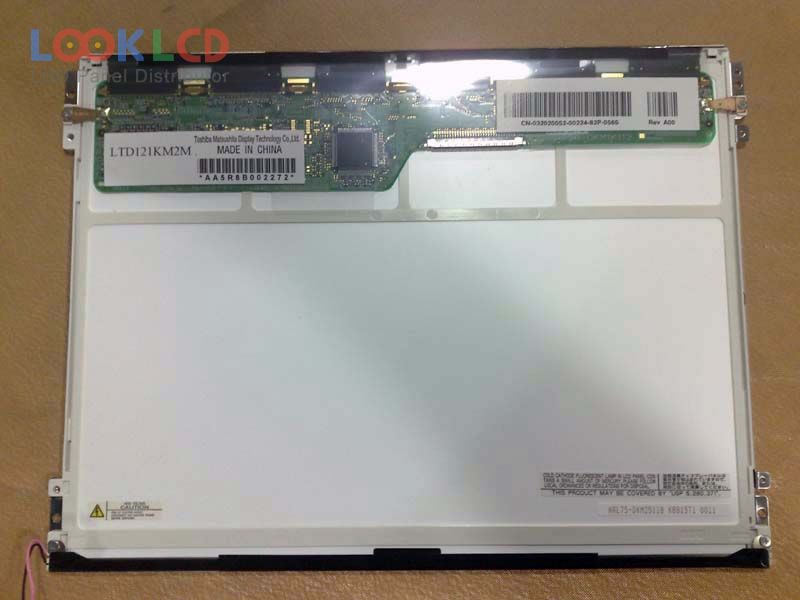

| Artikelnummer | LTD121KM2M |
| Marke | TOSHIBA |
| Größe | 12.1 |
| Anwendung | |
| Auflösung | 1400×1050 |
| Komposition | LCM |
| Helligkeit | 160 |
| CR | 250:1 |
| Farben | 262K |
| Hintergrundbeleuchtung | CCFL |
| Schnittstelle | LVDS |
| Panel-Marke | Toshiba Matsushita |
| Panel-Modell | LTD121KM2M |
| Plattentyp | LTPS TFT-LCD , LCM |
| Panelgröße | 12.1 inch |
| Auflösung | 1400(RGB)×1050 , SXGA+ |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 245.7×184.275 mm |
| Umriss | 269×199×6.8 mm |
| Oberfläche | |
| Helligkeit | 160 cd/m² (Typ.) |
| Kontrastverhältnis | 250:1 (Typ.) |
| Farben anzeigen | 262K (6-bit) |
| Reaktionszeit | 50/50 (Max.)(Tr/Td) |
| Blickwinkel | 50/50/45/50 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 1 pcsCCFLWithout Driver |
| Signalschnittstelle | LVDS (2 ch, 6-bit), 30 pins |
| Eingangsspannung | 3.3V (Typ.) |
