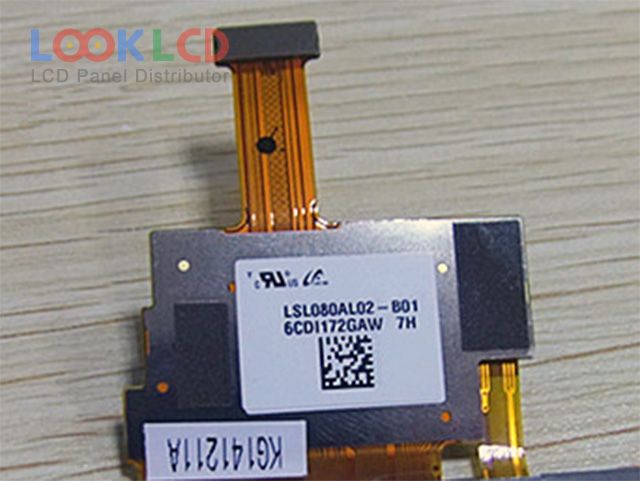

| Artikelnummer | LSL080AL02-B01 |
| Marke | Samsung |
| Größe | 8.0 |
| Anwendung | PAD |
| Auflösung | 800×1280 |
| Komposition | LCM |
| Helligkeit | |
| CR | 800:1 |
| Farben | 16.7M |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | Analog |
| Panel-Marke | SAMSUNG |
| Panel-Modell | LSL080AL02-B01 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 8.0 inch |
| Auflösung | 800(RGB)×1280 , WXGA |
| Anzeigemodus | PLS, Normally Black, Transmissive |
| aktiver Bereich | 107.64×172.224 mm |
| Oberfläche | Hard coating |
| Helligkeit | |
| Kontrastverhältnis | 800:1 (Typ.) |
| Farben anzeigen | 16.7M (8-bit), CIE193155% |
| Reaktionszeit | 16 (Typ.)(Tr+Td) |
| Blickwinkel | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | WLED |
| Anwendung | PAD |
