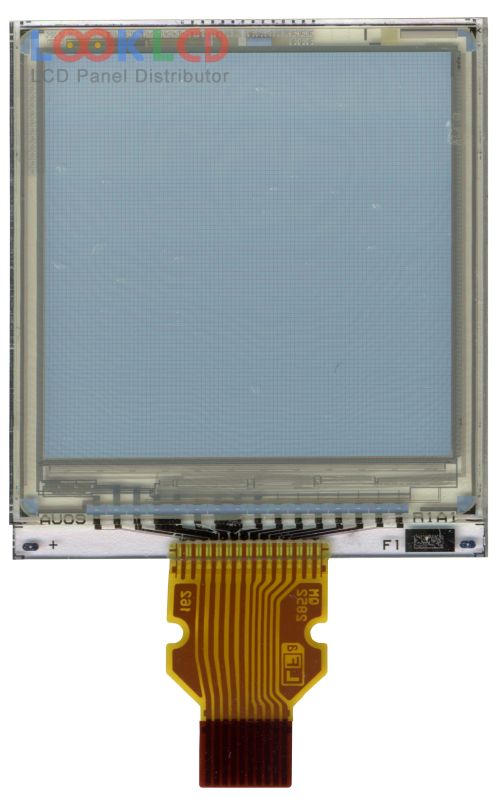

| Artikelnummer | LS013B4DN02 |
| Marke | SHARP |
| Größe | 1.35 |
| Anwendung | |
| Auflösung | 96×96 |
| Komposition | LCM |
| Helligkeit | |
| CR | |
| Farben | Monochrome |
| Hintergrundbeleuchtung | No B/L |
| Schnittstelle | SPI |
| Panel-Marke | SHARP |
| Panel-Modell | LS013B4DN02 |
| Plattentyp | CG-Silicon , LCM |
| Panelgröße | 1.35 inch |
| Auflösung | 96×96 |
| Anzeigemodus | PNLC, Reflective |
| aktiver Bereich | 24.192×24.192 mm |
| Umriss | 28.2×31.64 mm |
| Oberfläche | Without Polarizer, Hard coating (3H) |
| Helligkeit | |
| Kontrastverhältnis | 10:1 (Typ.)(Reflective) |
| Farben anzeigen | Monochrome |
| Reaktionszeit | 50/50 (Typ.)(Tr/Td) |
| Blickwinkel | 60/60/60/60 (Typ.)(CR≥3)(L/R/U/D) |
| Lampentyp | No B/L |
| Signalschnittstelle | SPI, 10 pins |
| Eingangsspannung | 5.0/5.0V (Typ.)(VDDA/VDD) |
