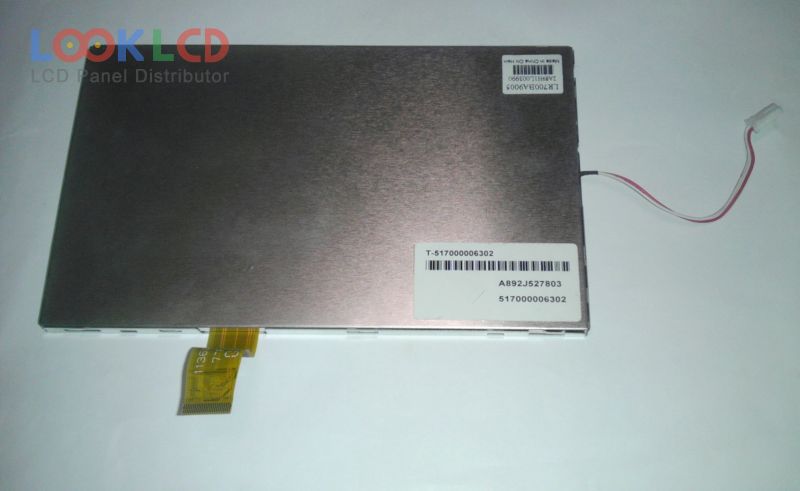

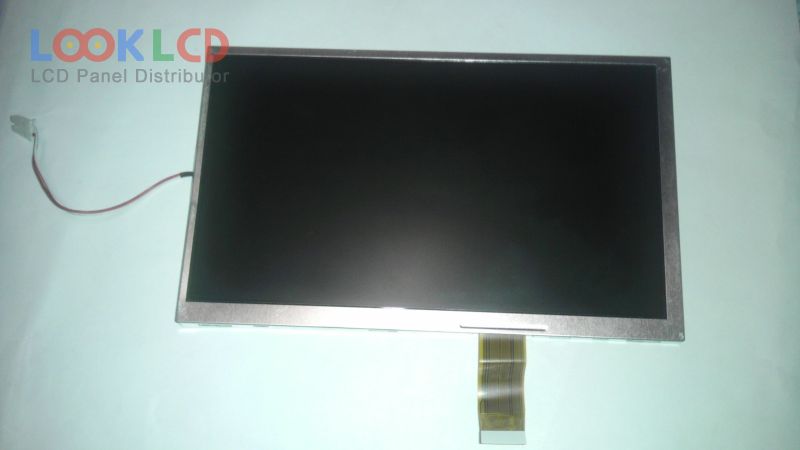

| Artikelnummer | LR700BA9005 |
| Marke | Innolux |
| Größe | 7.0 |
| Anwendung | VDP |
| Auflösung | 480×234 |
| Komposition | LCM |
| Helligkeit | 250 |
| CR | 250:1 |
| Farben | Full color |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | Analog |
| Panel-Marke | ChiHsin |
| Panel-Modell | LR700BA9005 1 Compatible model |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 7.0 inch |
| Auflösung | 480(RGB)×234 |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 154.08×86.58 mm |
| Umriss | 164.9×100 mm |
| Oberfläche | Antiglare |
| Helligkeit | 250 cd/m² (Typ.) |
| Kontrastverhältnis | 250:1 (Typ.) |
| Farben anzeigen | Full color |
| Reaktionszeit | 15/35 (Typ.)(Tr/Td) |
| Blickwinkel | 70/70/50/65 (Typ.)(CR≥10)(L/R/U/D) |
| Lampentyp | 3S7PWLEDWithout Driver |
| Signalschnittstelle | TFT Specific Analog RGB, 26 pins |
| Eingangsspannung | 5/5/15/-10V (Typ.)(VCC/AVDD/VGH/VGL) |
| Anwendung | VDP |
