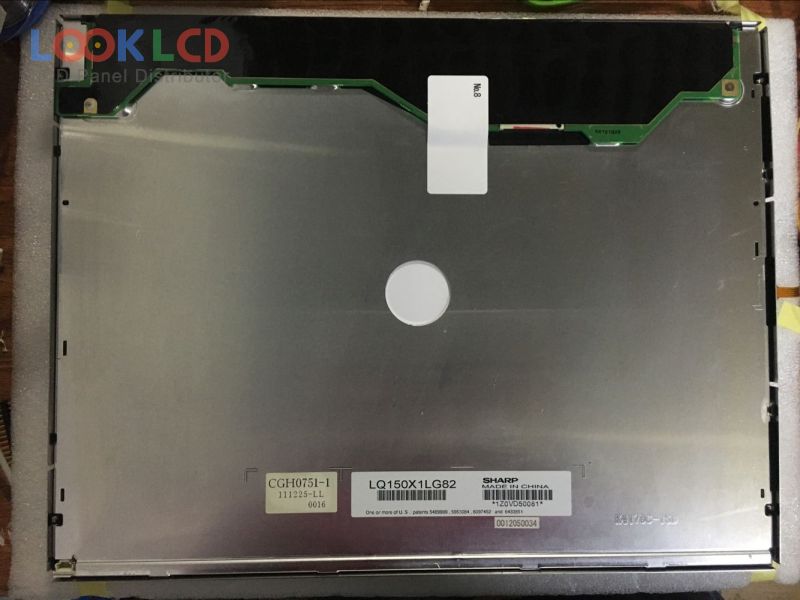

| Artikelnummer | LQ150X1LG82 |
| Marke | SHARP |
| Größe | 15.0 |
| Anwendung | IA |
| Auflösung | 1024×768 |
| Komposition | LCM |
| Helligkeit | 350 |
| CR | 550:1 |
| Farben | 16.2M |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | LVDS |
| Panel-Marke | SHARP |
| Panel-Modell | LQ150X1LG82 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 15.0 inch |
| Auflösung | 1024(RGB)×768 , XGA |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 304.128×228.096 mm |
| Umriss | 326×252×14.2 mm |
| Oberfläche | Antiglare (Haze 25%), Hard coating (3H) |
| Helligkeit | 350 cd/m² (Typ.) |
| Kontrastverhältnis | 550:1 (Typ.) |
| Farben anzeigen | 16.2M (6-bit + FRC), CIE193151% |
| Reaktionszeit | 2/6 (Typ.)(Tr/Td) |
| Blickwinkel | 60/60/45/55 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 10S3PWLEDWithout Driver |
| Signalschnittstelle | LVDS (1 ch, 8-bit), 20 pins |
| Eingangsspannung | 3.3V (Typ.) |
| Anwendung | IA |
