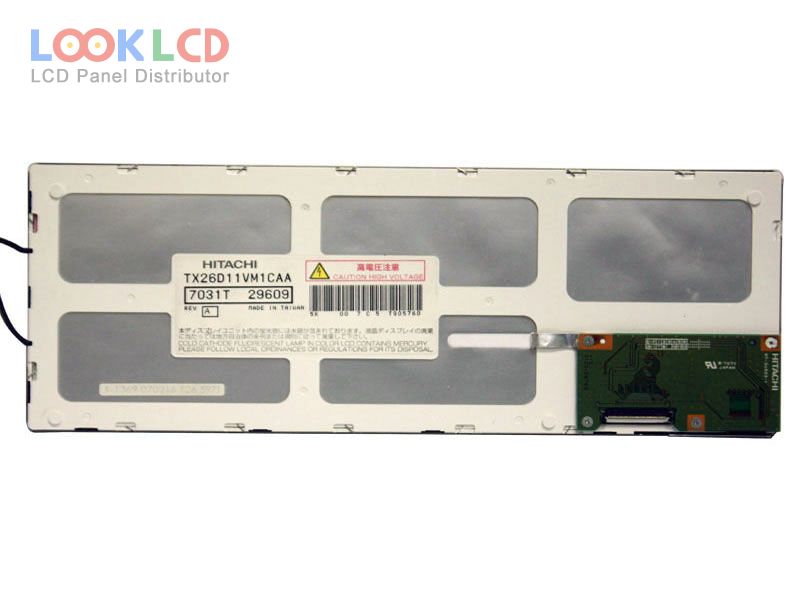

| Artikelnummer | TX26D11VM1CAA |
| Marke | KOE |
| Größe | 10.4 |
| Anwendung | IA |
| Auflösung | 640×480 |
| Komposition | LCM |
| Helligkeit | 350 |
| CR | 300:1 |
| Farben | 262K |
| Hintergrundbeleuchtung | CCFL |
| Schnittstelle | TTL |
| Panel-Marke | HITACHI |
| Panel-Modell | TX26D11VM1CAA |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 10.4 inch |
| Auflösung | 640(RGB)×480 , VGA |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 211.2×158.4 mm |
| Umriss | 243×181.6×12.5 mm |
| Oberfläche | Antiglare, Hard coating (3H) |
| Helligkeit | 350 cd/m² (Typ.) |
| Kontrastverhältnis | 300:1 (Typ.) |
| Farben anzeigen | 262K (6-bit) |
| Reaktionszeit | 30/20 (Typ.)(Tr/Td) |
| Blickwinkel | 65/65/65/65 (Typ.)(CR≥5)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 2 pcsCCFLWithout Driver |
| Signalschnittstelle | CMOS (1 ch, 6-bit), 31 pins |
| Eingangsspannung | 3.3V (Typ.)(VDD) |
| rohs: | |
| Anwendung | IA |
