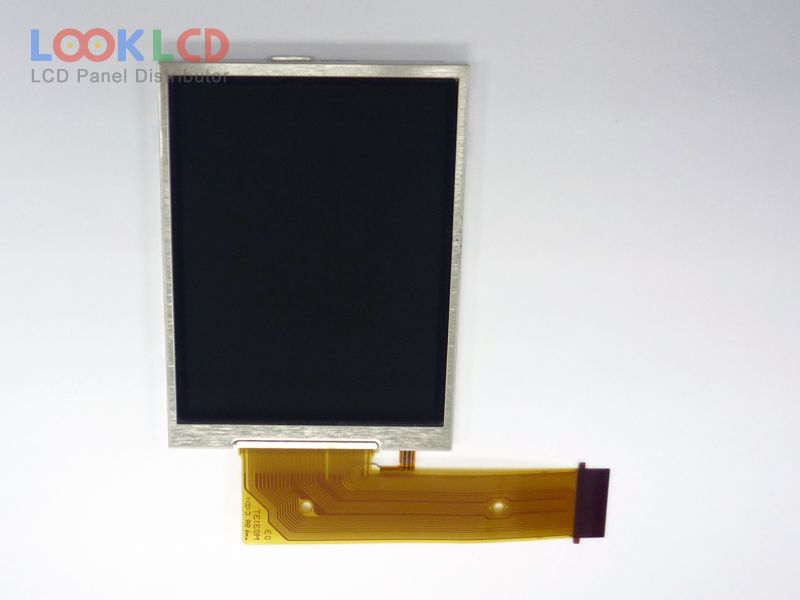

| Artikelnummer | LQ025A3DD01 |
| Marke | SHARP |
| Größe | 2.5 |
| Anwendung | DSC |
| Auflösung | 480×240 |
| Komposition | LCM |
| Helligkeit | 400 |
| CR | 400:1 |
| Farben | 16.7M |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | Serial RGB |
| Panel-Marke | SHARP |
| Panel-Modell | LQ025A3DD01 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 2.5 inch |
| Auflösung | 480×240 |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 49.89×37.44 mm |
| Umriss | 58.85×43.55 mm |
| Oberfläche | Clear, Hard coating (2H) |
| Helligkeit | 400 cd/m² (Typ.) |
| Kontrastverhältnis | 400:1 (Typ.) |
| Farben anzeigen | 16.7M (6-bit + Hi-FRC), CIE193135% |
| Reaktionszeit | 30/50 (Typ.)(Tr/Td) |
| Blickwinkel | 50/50/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| Lampentyp | 3S1PWLEDWithout Driver |
| Signalschnittstelle | Serial RGB (8-bit) + SPI, 39 pins |
| Anwendung | DSC |
