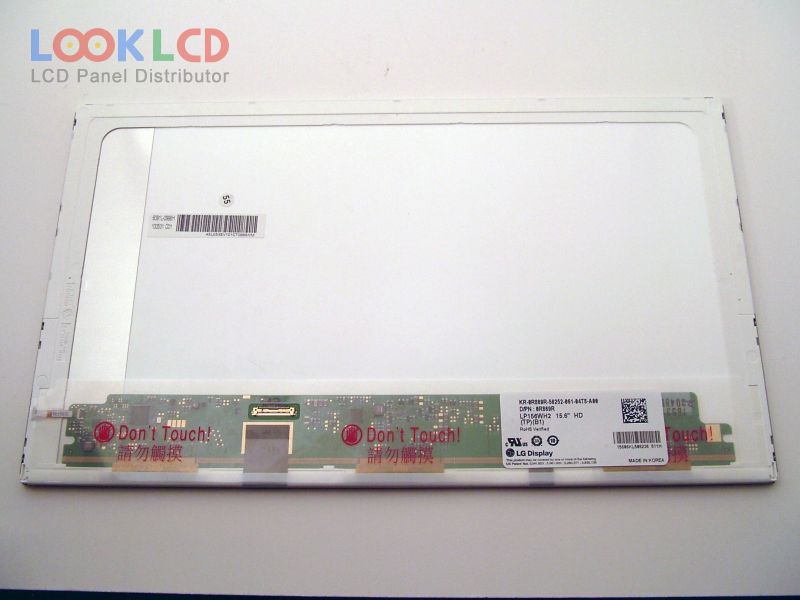

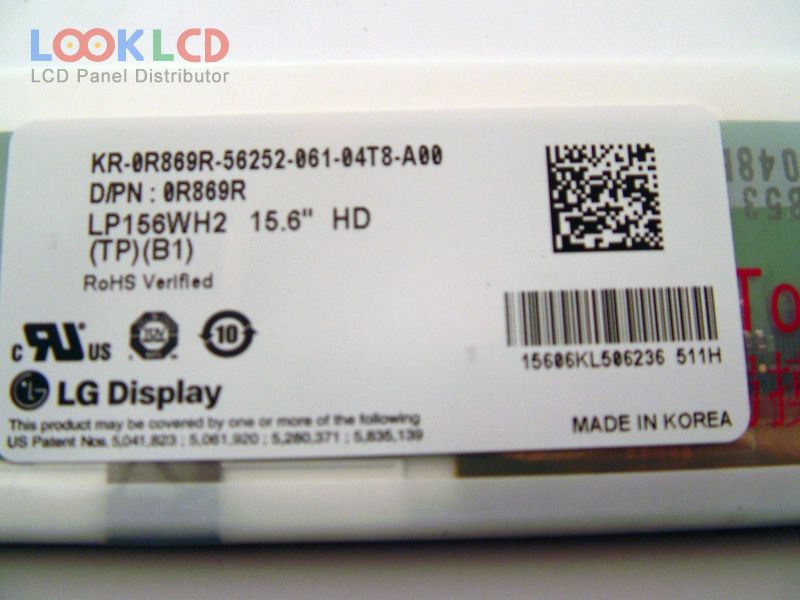

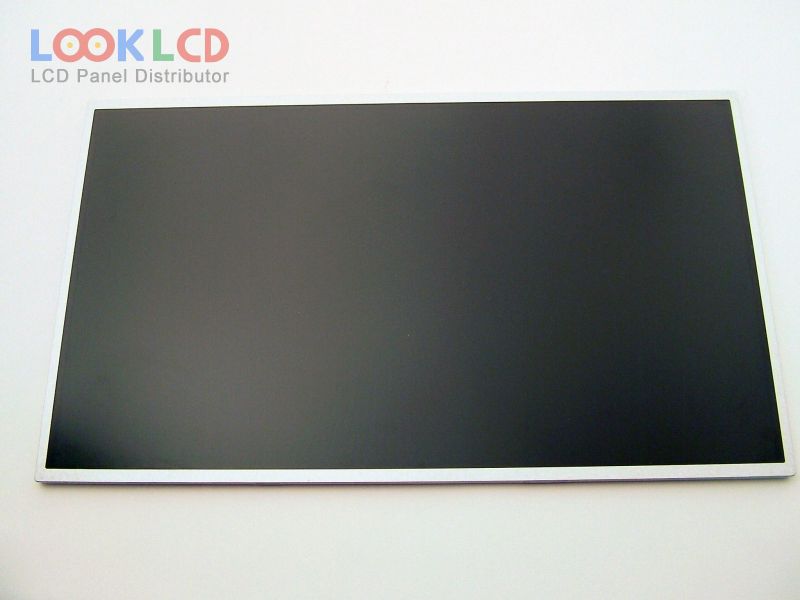

| Artikelnummer | LP156WH2-TPB1 |
| Marke | LG Display |
| Größe | 15.6 |
| Anwendung | NBPC |
| Auflösung | 1366×768 |
| Komposition | LCM |
| Helligkeit | 220 |
| CR | 300:1 |
| Farben | 262K |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | eDP |
| Panel-Marke | LG Display |
| Panel-Modell | LP156WH2-TPB1 4 Compatible model |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 15.6 inch |
| Auflösung | 1366(RGB)×768 , WXGA |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 344.232×193.536 mm |
| Umriss | 359.3×209.5×5.5 mm |
| Formstil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Oberfläche | Antiglare |
| Helligkeit | 220 cd/m² (Typ.) |
| Kontrastverhältnis | 300:1 (Min.) |
| Farben anzeigen | 262K (6-bit), CIE193160% |
| Reaktionszeit | 16 (Typ.)(Tr+Td) |
| Blickwinkel | 40/40/10/30 (Min.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | WLEDEmbedded (LED Driver) |
| Signalschnittstelle | eDP (2 Lanes), 30 pins |
| Eingangsspannung | 3.3V (Typ.) |
| Anwendung | NBPC |
| LP156WD1-TLB4 | LG Display | 15.6 | 1600×900 |
| LP156WF1-TLC1 | LG Display | 15.6 | 1920×1080 |
| LP156WF4-SLB7 | LG Display | 15.6 | 1920×1080 |
| LP156WH1-TLA3 | LG Display | 15.6 | 1366×768 |
| LP156WH1-TLC1 | LG Display | 15.6 | 1366×768 |
| LP156WH1-TLC2 | LG Display | 15.6 | 1366×768 |
| LP156WH2-TPB1 | LG Display | 15.6 | 1366×768 |
| LP156WH3-TLA1 | LG Display | 15.6 | 1366×768 |
| LP156WH4-TLN1 | LG Display | 15.6 | 1366×768 |
| LP156WH4-TPP1 | LG Display | 15.6 | 1366×768 |
| B156HB01 V0 | AUO | 15.6 | 1920×1080 |
| B170PW03 V0 | AUO | 17.0 | 1440×900 |
| LP133WP1-TJA1 | LG Display | 13.3 | 1440×900 |
| LP140WF1-SPU1 | LG Display | 14.0 | 1920×1080 |
| LP154WX4-TLCB | LG Display | 15.4 | 1280×800 |
| LP156WD1-TLB2 | LG Display | 15.6 | 1600×900 |
| LTD121EW7V | TOSHIBA | 12.1 | 1280×800 |
| LTN121W1-L03 | Samsung | 12.1 | 1280×800 |
| LTN140AT08-S03 | Samsung | 14.0 | 1366×768 |
| N140BGE-L33 | Innolux | 14.0 | 1366×768 |
