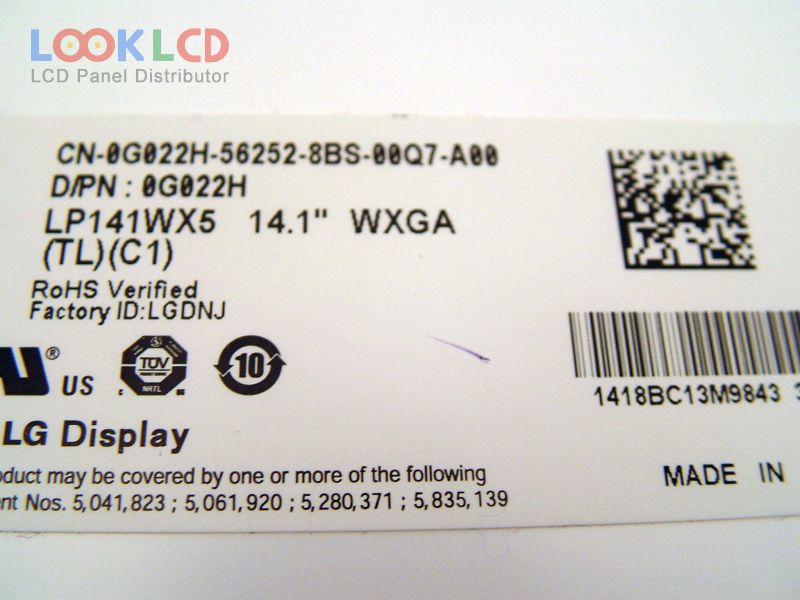

| Artikelnummer | LP141WX5-TLC1 |
| Marke | LG Display |
| Größe | 14.1 |
| Anwendung | NBPC |
| Auflösung | 1280×800 |
| Komposition | LCM |
| Helligkeit | 220 |
| CR | 400:1 |
| Farben | 262K |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | LVDS |
| Panel-Marke | LG Display |
| Panel-Modell | LP141WX5-TLC1 2 Compatible model |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 14.1 inch |
| Auflösung | 1280(RGB)×800 , WXGA |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 303.74×189.84 mm |
| Umriss | 319.5×205.5×5.5 mm |
| Formstil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Oberfläche | Antiglare |
| Helligkeit | 220 cd/m² (Typ.) |
| Kontrastverhältnis | 400:1 (Min.) |
| Farben anzeigen | 262K (6-bit), CIE193145% |
| Reaktionszeit | 16 (Typ.)(Tr+Td) |
| Blickwinkel | 40/40/10/30 (Min.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 8S6PWLEDWithout Driver |
| Signalschnittstelle | LVDS (1 ch, 6-bit), 30 pins |
| Eingangsspannung | 3.3V (Typ.) |
| Anwendung | NBPC |
