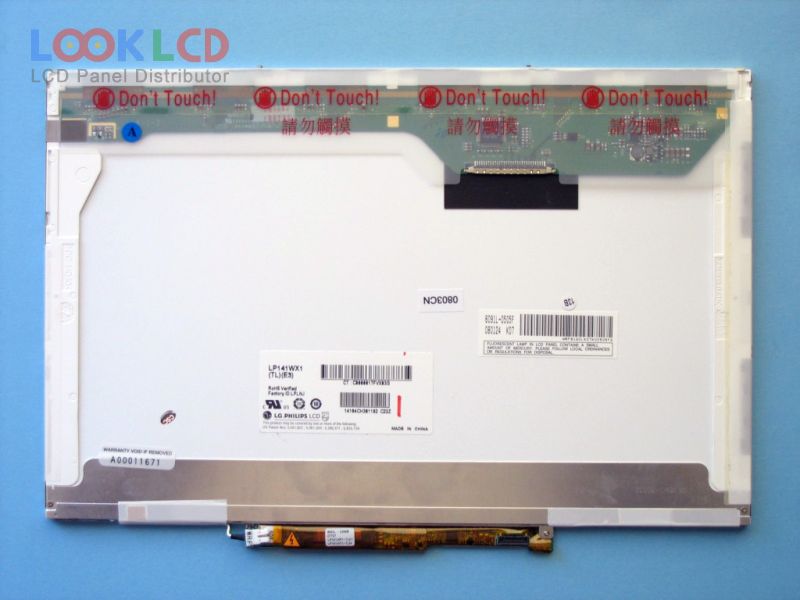

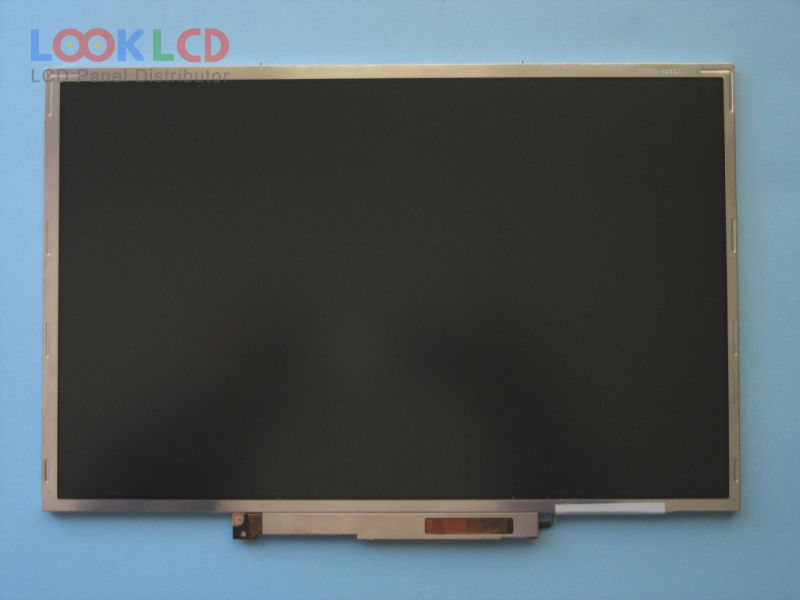

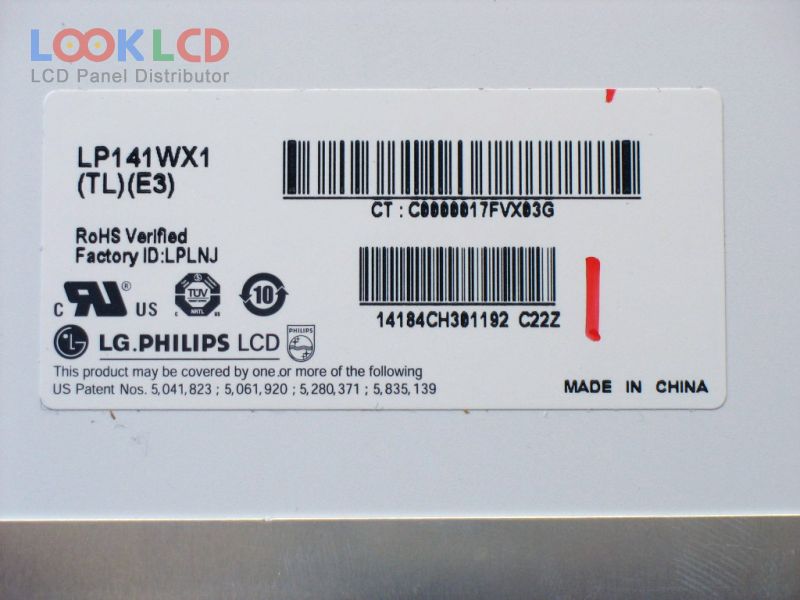

| Artikelnummer | LP141WX1-TLE3 |
| Marke | LG Display |
| Größe | 14.1 |
| Anwendung | NBPC |
| Auflösung | 1280×800 |
| Komposition | LCM |
| Helligkeit | 220 |
| CR | 300:1 |
| Farben | 262K |
| Hintergrundbeleuchtung | CCFL |
| Schnittstelle | LVDS |
| Panel-Marke | LG.Philips LCD |
| Panel-Modell | LP141WX1-TLE3 9 Compatible model |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 14.1 inch |
| Auflösung | 1280(RGB)×800 , WXGA |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 303.74×189.84 mm |
| Umriss | 319.5×218×5.5 mm |
| Formstil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Oberfläche | Antiglare |
| Helligkeit | 220 cd/m² (Typ.) |
| Kontrastverhältnis | 300:1 (Min.) |
| Farben anzeigen | 262K (6-bit), CIE193145% |
| Reaktionszeit | 5.5/10.5 (Typ.)(Tr/Td) |
| Blickwinkel | 40/40/15/35 (Min.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 1 pcsCCFLWithout Driver |
| Signalschnittstelle | LVDS (1 ch, 6-bit), 30 pins |
| Eingangsspannung | 3.3V (Typ.) |
| Anwendung | NBPC |
| LP141WP1-TLC1 | LG Display | 14.1 | 1440×900 |
| LP141WP1-TLC3 | LG Display | 14.1 | 1440×900 |
| LP141WX1-TLA1 | LG Display | 14.1 | 1280×800 |
| LP141WX3-TLA4 | LG Display | 14.1 | 1280×800 |
| LP141WX3-TLN2 | LG Display | 14.1 | 1280×800 |
| LP141WX5-TLA1 | LG Display | 14.1 | 1280×800 |
| LP141WX5-TLP1 | LG Display | 14.1 | 1280×800 |
| LP141WX5-TLP2 | LG Display | 14.1 | 1280×800 |
| LP141WX5-TPP1 | LG Display | 14.1 | 1280×800 |
| LP141WXV-SLA2 | LG Display | 14.1 | 1280×800 |
| B133XW01 V7 | AUO | 13.3 | 1366×768 |
| B170PW06 V2 | AUO | 17.0 | 1440×900 |
| LP140WH4-TLB1 | LG Display | 14.0 | 1366×768 |
| LP171WU5-TLA2 | LG Display | 17.1 | 1920×1200 |
| LTN133AT05-S02 | Samsung | 13.3 | 1280×800 |
| LTN133AT17-W01 | Samsung | 13.3 | 1366×768 |
| LTN160AT01-A05 | Samsung | 16.0 | 1366×768 |
| N156O6-L04 | Innolux | 15.6 | 1600×900 |
| N173FGE-L21 | Innolux | 17.3 | 1600×900 |
| TM150SP-02L01 | SANYO | 15.0 | 1400×1050 |
