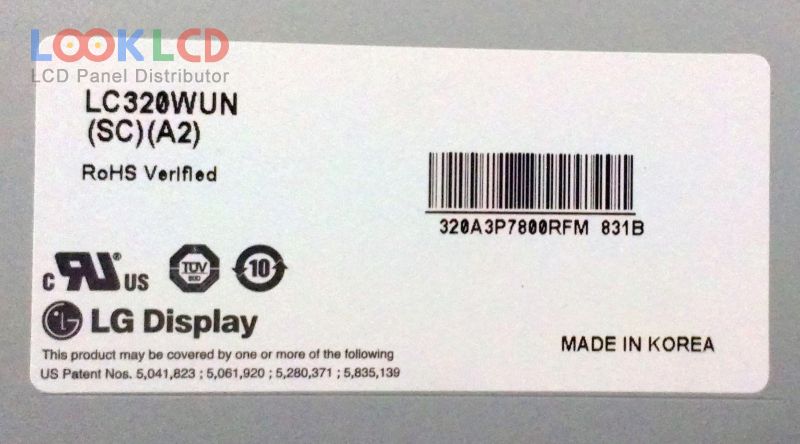

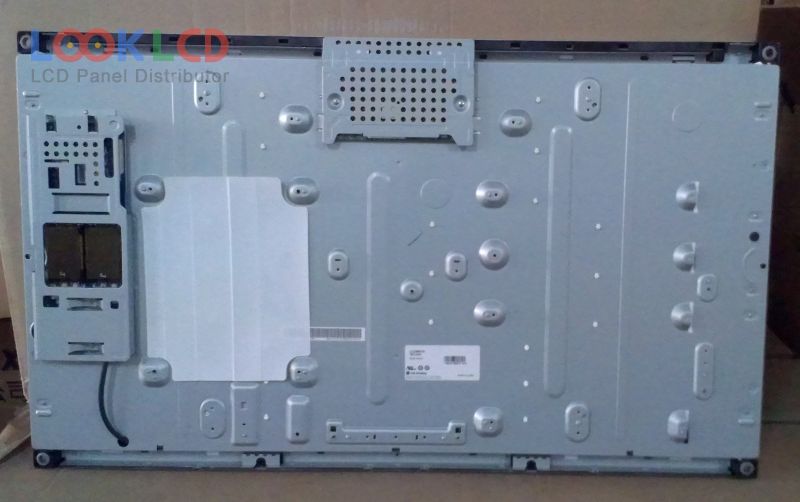

| Artikelnummer | LC320WUN-SCA2 |
| Marke | LG Display |
| Größe | 31.5 |
| Anwendung | LCTV |
| Auflösung | 1920×1080 |
| Komposition | LCM |
| Helligkeit | 380 |
| CR | 1000:1 |
| Farben | 16.7M/1.06B |
| Hintergrundbeleuchtung | EEFL |
| Schnittstelle | LVDS |
| Panel-Marke | LG Display |
| Panel-Modell | LC320WUN-SCA2 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 31.5 inch |
| Auflösung | 1920(RGB)×1080 , FHD |
| Anzeigemodus | S-IPS, Normally Black, Transmissive |
| aktiver Bereich | 698.4×392.85 mm |
| Umriss | 760×450 mm |
| Oberfläche | Antiglare (Haze 10%), Hard coating (3H) |
| Helligkeit | 380 cd/m² (Typ.) |
| Kontrastverhältnis | 1000:1 (Typ.) |
| Farben anzeigen | 16.7M/1.06B (8-bit / 8-bit + FRC), CIE193172% |
| Reaktionszeit | 5 (Typ.)(G to G) |
| Blickwinkel | 89/89/89/89 (Min.)(CR>10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | EEFLEmbedded (Inverter) |
| Signalschnittstelle | LVDS (2 ch, 8/10-bit), 51 pins |
| Eingangsspannung | 12.0V (Typ.) |
| Anwendung | LCTV |
