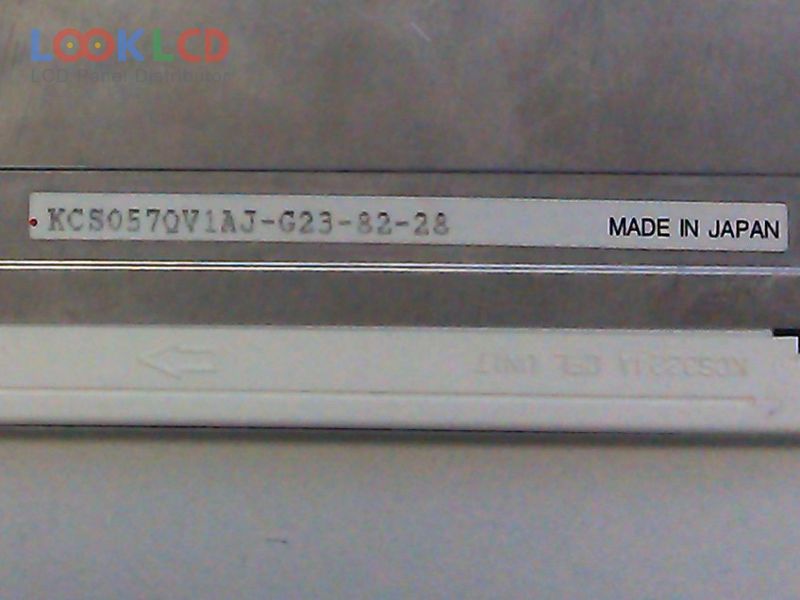

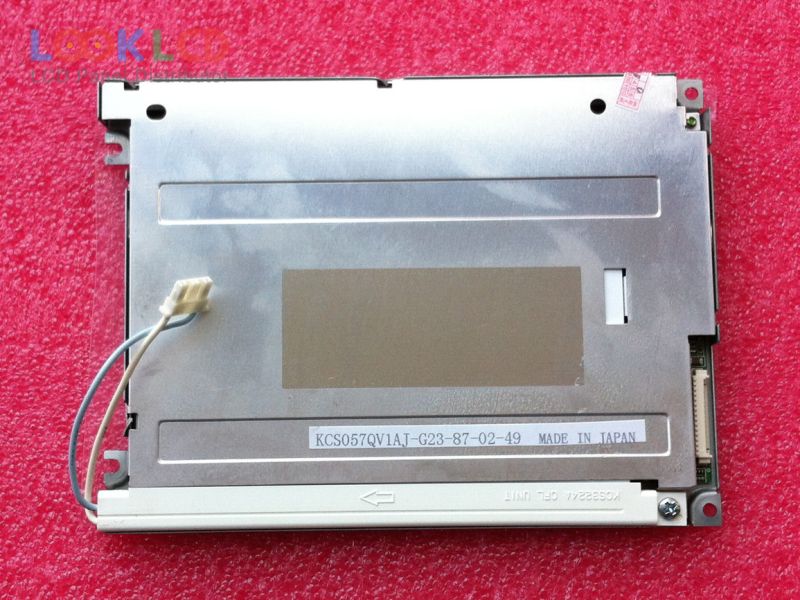

| Artikelnummer | KCS057QV1AJ-G23 |
| Marke | Kyocera |
| Größe | 5.7 |
| Anwendung | IA |
| Auflösung | 320×240 |
| Komposition | LCM |
| Helligkeit | 200 |
| CR | 40:1 |
| Farben | Color |
| Hintergrundbeleuchtung | CCFL |
| Schnittstelle | Parallel Data |
| Panel-Marke | Kyocera |
| Panel-Modell | KCS057QV1AJ-G23 |
| Plattentyp | CSTN-LCD , LCM |
| Panelgröße | 5.7 inch |
| Auflösung | 320(RGB)×240 , QVGA |
| Anzeigemodus | STN, Normally Black, Transmissive |
| aktiver Bereich | 115.2×86.4 mm |
| Umriss | 154.6×114.8×9 mm |
| Oberfläche | Glare (Haze 0%) |
| Helligkeit | 200 cd/m² (Typ.) |
| Kontrastverhältnis | 40:1 (Typ.) |
| Farben anzeigen | Color |
| Reaktionszeit | 220/110 (Typ.)(Tr/Td) |
| Blickwinkel | 50/50/30/30 (Typ.)(CR≥2)(L/R/U/D) |
| Frequenz | 75Hz |
| Lampentyp | 1 pcsCCFLOptional |
| Signalschnittstelle | Parallel Data (8-bit), 15 pins |
| Eingangsspannung | 5.0V (Typ.) |
| Anwendung | IA |
