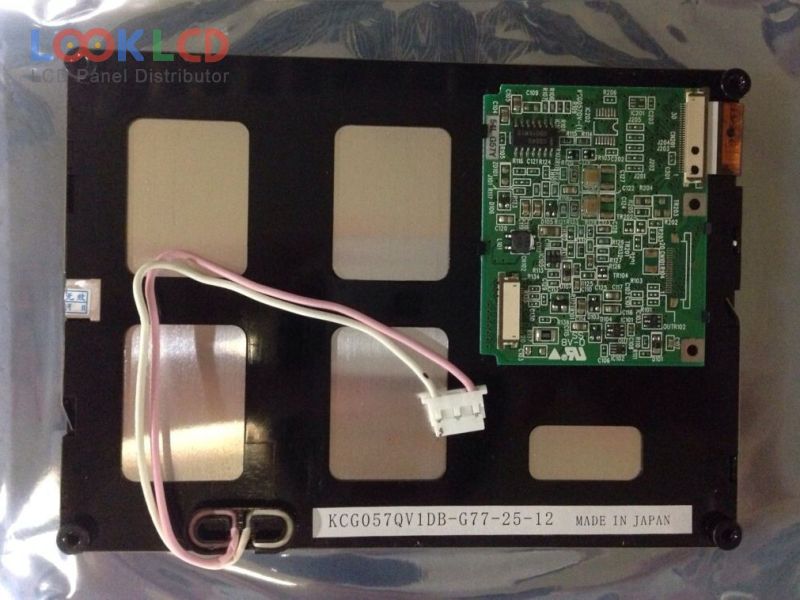

| Artikelnummer | KCG057QV1DB-G77 |
| Marke | Kyocera |
| Größe | 5.7 |
| Anwendung | IA |
| Auflösung | 320×240 |
| Komposition | LCM |
| Helligkeit | 380 |
| CR | 60:1 |
| Farben | Color |
| Hintergrundbeleuchtung | CCFL |
| Schnittstelle | Parallel Data |
| Panel-Marke | Kyocera |
| Panel-Modell | KCG057QV1DB-G77 |
| Plattentyp | CSTN-LCD , LCM |
| Panelgröße | 5.7 inch |
| Auflösung | 320(RGB)×240 , QVGA |
| Anzeigemodus | STN, Normally Black, Transmissive |
| aktiver Bereich | 115.2×86.4 mm |
| Umriss | 144×104.8×13.2 mm |
| Oberfläche | |
| Helligkeit | 380 cd/m² (Typ.) |
| Kontrastverhältnis | 60:1 (Typ.) |
| Farben anzeigen | Color |
| Reaktionszeit | 450 (Typ.)(Tr+Td) |
| Blickwinkel | 55/55/60/75 (Typ.)(CR≥2)(L/R/U/D) |
| Frequenz | 75Hz |
| Lampentyp | 1 pcsCCFLWithout Driver |
| Signalschnittstelle | Parallel Data (8-bit), 20 pins |
| Eingangsspannung | 3.3/5.0V (Typ.)(VDD) |
| Anwendung | IA |
