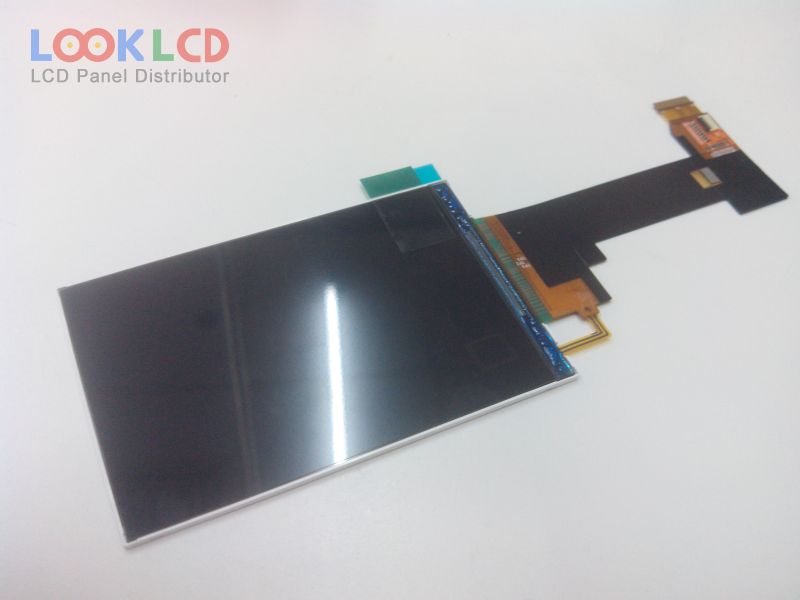

| Artikelnummer | H347QVN02.0 |
| Marke | AUO |
| Größe | 3.5 |
| Anwendung | MPH |
| Auflösung | 320×480 |
| Komposition | LCM |
| Helligkeit | 430 |
| CR | 700:1 |
| Farben | 262K |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | MIPI |
| Panel-Marke | AUO |
| Panel-Modell | H347QVN02.0 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 3.5 inch |
| Auflösung | 320(RGB)×480 , HVGA |
| Anzeigemodus | VA, Normally Black, Transmissive |
| aktiver Bereich | 48.96×73.44 mm |
| Umriss | 53.16×81.62×1.55 mm |
| Oberfläche | Hard coating |
| Helligkeit | 430 cd/m² (Typ.) |
| Kontrastverhältnis | 700:1 (Typ.) |
| Farben anzeigen | 262K (6-bit) |
| Reaktionszeit | 30 (Typ.)(Tr+Td) |
| Blickwinkel | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 6S1PWLEDWithout Driver |
| Signalschnittstelle | MIPI (1 data lane), 35 pins |
| Eingangsspannung | 2.8V (Typ.)(VCI) |
| Anwendung | MPH |
