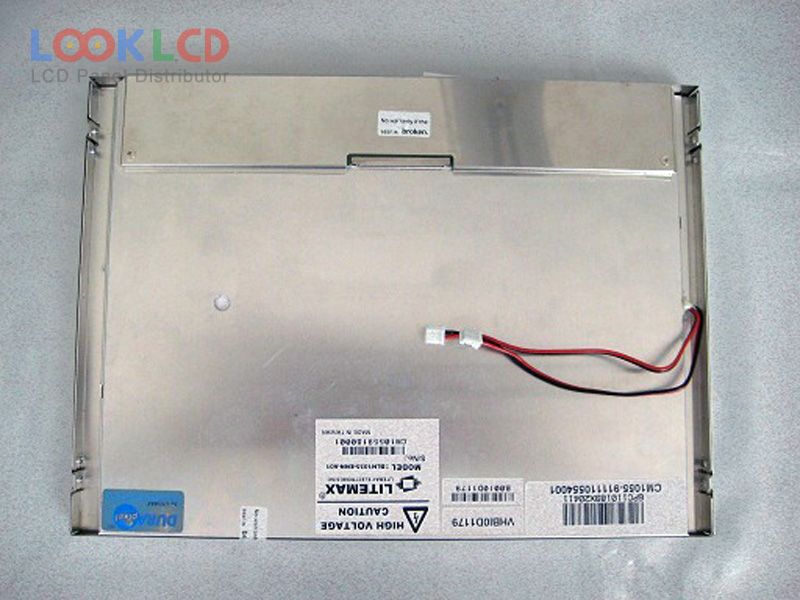

| Artikelnummer | DLH1055 |
| Marke | LiteMax |
| Größe | 10.4 |
| Anwendung | IA |
| Auflösung | 1024×768 |
| Komposition | LCM |
| Helligkeit | 1000 |
| CR | 1200:1 |
| Farben | 16.2M |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | LVDS |
| Panel-Marke | LiteMax |
| Panel-Modell | DLH1055 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 10.4 inch |
| Auflösung | 1024(RGB)×768 , XGA |
| Anzeigemodus | FFS, Normally Black, Transmissive |
| aktiver Bereich | 210.4×157.8 mm |
| Umriss | 238.1×173 mm |
| Oberfläche | |
| Helligkeit | 1000 cd/m² (Typ.) |
| Kontrastverhältnis | 1200:1 (Typ.) |
| Farben anzeigen | 16.2M (6-bit + FRC) |
| Reaktionszeit | 40 (Typ.)(Tr+Td) |
| Blickwinkel | 88/88/88/88 (Typ.)(CR≥10)(L/R/U/D) |
| Lampentyp | WLEDWithout Driver |
| Signalschnittstelle | LVDS (1 ch, 8-bit), 30 pins |
| Anwendung | IA |
