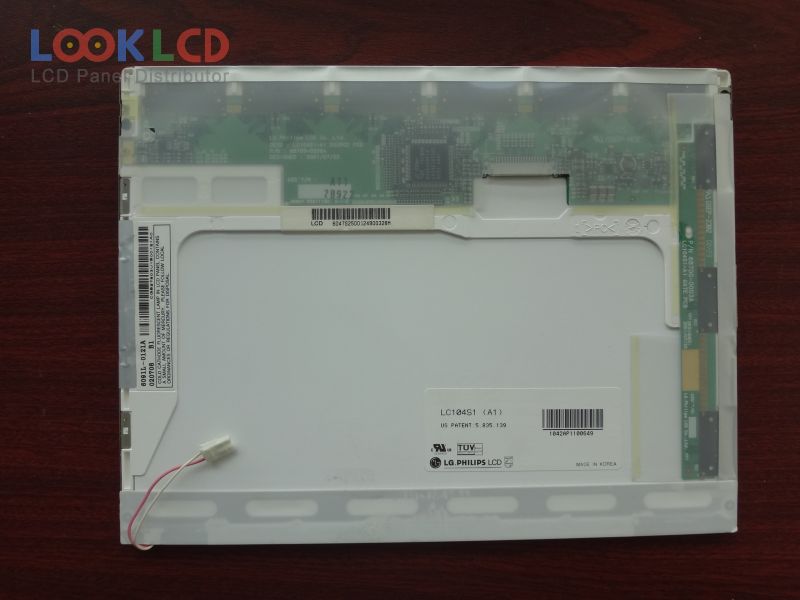

| Artikelnummer | LC104S1-A1 |
| Marke | LG Display |
| Größe | 10.4 |
| Anwendung | PAD |
| Auflösung | 800×600 |
| Komposition | LCM |
| Helligkeit | 120 |
| CR | 40:1 |
| Farben | 262K |
| Hintergrundbeleuchtung | CCFL |
| Schnittstelle | LVDS |
| Panel-Marke | LG.Philips LCD |
| Panel-Modell | LC104S1-A1 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 10.4 inch |
| Auflösung | 800(RGB)×600 , SVGA |
| Anzeigemodus | TN, Normally White, Transflective |
| aktiver Bereich | 211.2×158.4 mm |
| Umriss | 244.5×172×6.6 mm |
| Oberfläche | Antiglare, Hard coating (3H) |
| Helligkeit | 120 cd/m² (Typ.) |
| Kontrastverhältnis | 40:1 (Typ.)(Transmissive) |
| Farben anzeigen | 262K (6-bit) |
| Reaktionszeit | 10/30 (Typ.)(Tr/Td) |
| Blickwinkel | 25/25/25/45 (Min.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 1 pcsCCFLWithout Driver |
| Signalschnittstelle | LVDS (1 ch, 6-bit), 20 pins |
| Eingangsspannung | 3.3V (Typ.) |
| Anwendung | PAD |
