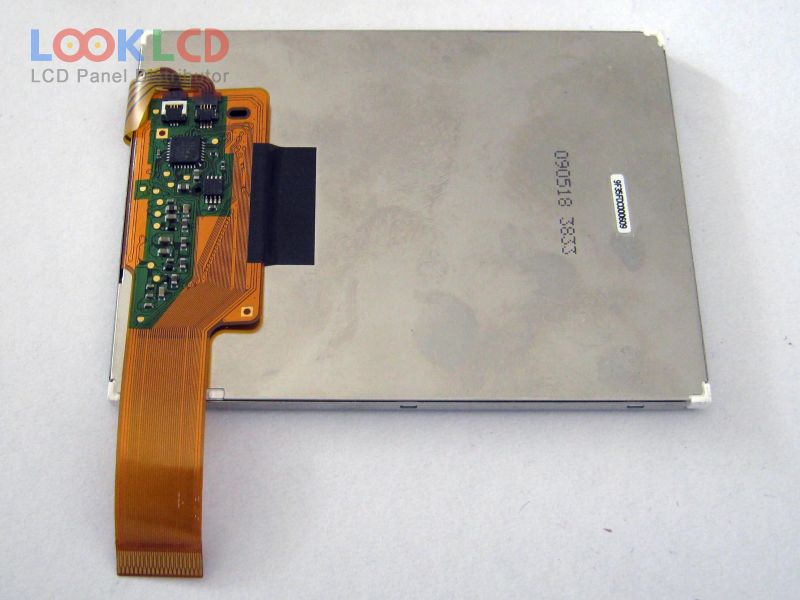

| Artikelnummer | COM35H3M10XTC |
| Marke | ORTUSTECH |
| Größe | 3.5 |
| Anwendung | HHP |
| Auflösung | 240×320 |
| Komposition | LCM |
| Helligkeit | 190 |
| CR | 400:1 |
| Farben | 262K |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | TTL |
| Panel-Marke | ORTUSTECH |
| Panel-Modell | COM35H3M10XTC 1 Compatible model |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 3.5 inch |
| Auflösung | 240(RGB)×320 , QVGA |
| Anzeigemodus | TN, Normally White, Transflective |
| aktiver Bereich | 53.64×71.52 mm |
| Umriss | 63.5×85×5.53 mm |
| Oberfläche | Hard coating (3H) |
| Helligkeit | 190 cd/m² (Typ.) |
| Kontrastverhältnis | 400:1 (Typ.)(Transmissive)2:1 (Typ.)(Reflective) |
| Farben anzeigen | 262K (6-bit) |
| Reaktionszeit | 40/60 (Max.)(Tr/Td) |
| Blickwinkel | 80/80/80/80 (Min.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 6S1PWLEDWithout Driver |
| Signalschnittstelle | Parallel RGB (1 ch, 6-bit), 39 pins |
| Eingangsspannung | 3.0V (Typ.) |
| Anwendung | HHP |
