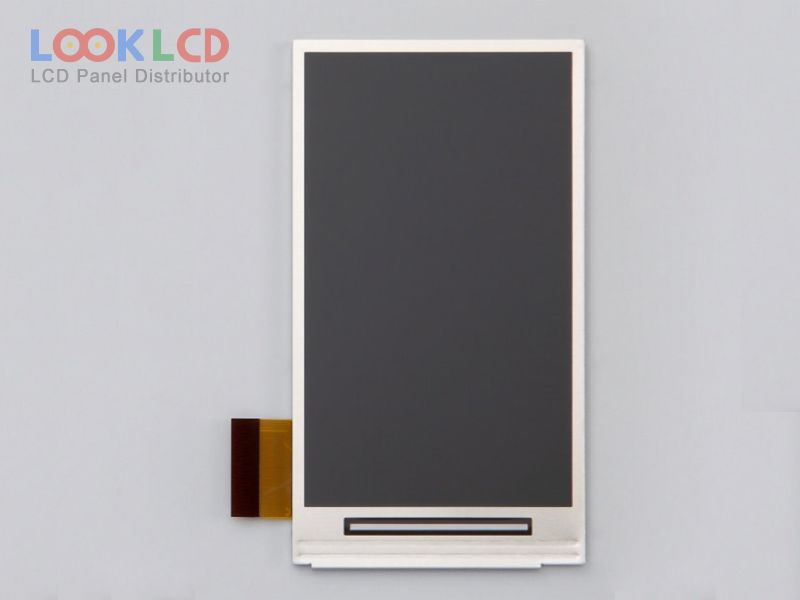

| Artikelnummer | 32NHF0H |
| Marke | SII |
| Größe | 3.2 |
| Anwendung | HHP |
| Auflösung | 360×640 |
| Komposition | LCM |
| Helligkeit | 300 |
| CR | 800:1 |
| Farben | 16.7M |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | CPU |
| Panel-Marke | SII |
| Panel-Modell | 32NHF0H |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 3.2 inch |
| Auflösung | 360(RGB)×640 , nHD |
| Anzeigemodus | FFS, Normally Black, Transmissive |
| aktiver Bereich | 39.96×71.04 mm |
| Umriss | 45.3×83.3 mm |
| Oberfläche | Clear, Hard coating |
| Helligkeit | 300 cd/m² (Typ.) |
| Kontrastverhältnis | 800:1 (Typ.) |
| Farben anzeigen | 16.7M (8-bit), CIE193172% |
| Reaktionszeit | 16/19 (Typ.)(Tr+Td) |
| Blickwinkel | 80/80/80/80 (Min.)(CR≥10)(L/R/U/D) |
| Lampentyp | 6S1PWLED |
| Signalschnittstelle | CPU, 51 pins |
| Anwendung | HHP |
