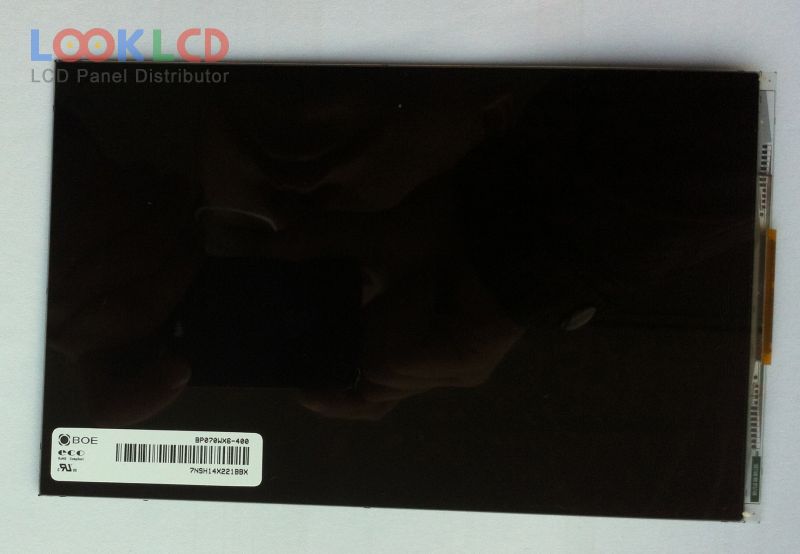

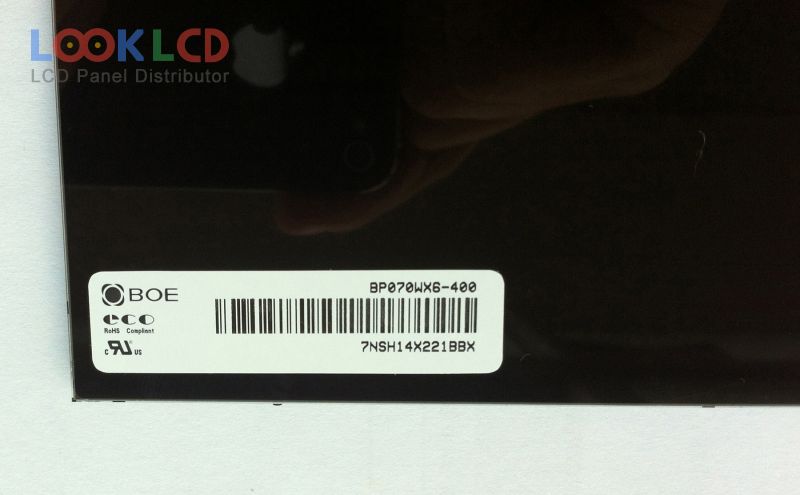

| Artikelnummer | BP070WX6-400 |
| Marke | BOE |
| Größe | 7.0 |
| Anwendung | PAD |
| Auflösung | 800×1280 |
| Komposition | CELL |
| Helligkeit | 0 |
| CR | 850:1 |
| Farben | 16.7M |
| Hintergrundbeleuchtung | No B/L |
| Schnittstelle | MIPI |
| Panel-Marke | BOE |
| Panel-Modell | BP070WX6-400 |
| Plattentyp | a-Si TFT-LCD , CELL |
| Panelgröße | 7.0 inch |
| Auflösung | 800(RGB)×1280 , WXGA |
| Anzeigemodus | ADS, Normally Black, Transmissive |
| aktiver Bereich | 94.2×150.72 mm |
| Umriss | 98.7×159.93 mm |
| Oberfläche | Antiglare (Haze 25%) |
| Glastiefe | 0.30+0.30 mm |
| Durchlässigkeit | 4.8% (Typ.)(with Polarizer) |
| Kontrastverhältnis | 850:1 (Typ.) |
| Farben anzeigen | 16.7M (8-bit), CIE193155% |
| Reaktionszeit | 30 (Typ.)(Tr+Td) |
| Blickwinkel | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| Treiber-IC | COG Built-in S6D7AA0 |
| Anwendung | PAD |
| BP070WS1-102 | BOE | 7.0 | 1024×600 |
| BP070WS1-200 | BOE | 7.0 | 1024×600 |
| BP070WS1-400 | BOE | 7.0 | 1024×600 |
| BP070WS1-500 | BOE | 7.0 | 1024×600 |
| BP070WSA-400 | BOE | 7.0 | 1024×600 |
| BP070WX1-100 | BOE | 7.0 | 1280×800 |
| BP070WX1-300 | BOE | 7.0 | 800×1280 |
| BP070WX6-400 | BOE | 7.0 | 800×1280 |
| HSD070IFW1-A00 | HannStar | 7.0 | 1024×600 |
| PW070XUA | E Ink | 7.0 | 480×234 |
| B101UAN07.0 | AUO | 10.1 | 1200×1920 |
| HSD101PWW1-F00 | HannStar | 10.1 | 1280×800 |
| HT12X21-351 | HYDIS | 12.1 | 1024×768 |
| HV121P01-101 | HYDIS | 12.1 | 1400×1050 |
| LD070WU2-SM01 | LG Display | 7.0 | 1200×1920 |
| LP097X02-SLQ1 | LG Display | 9.7 | 1024×768 |
| LTL089CL02-001 | Samsung | 8.9 | 1920×1200 |
| LTL101AL02-T01 | Samsung | 10.1 | 1280×800 |
| N101ICE-G62 | Innolux | 10.1 | 1280×800 |
| N101ICG-L21 Rev.C1 | Innolux | 10.1 | 1280×800 |
