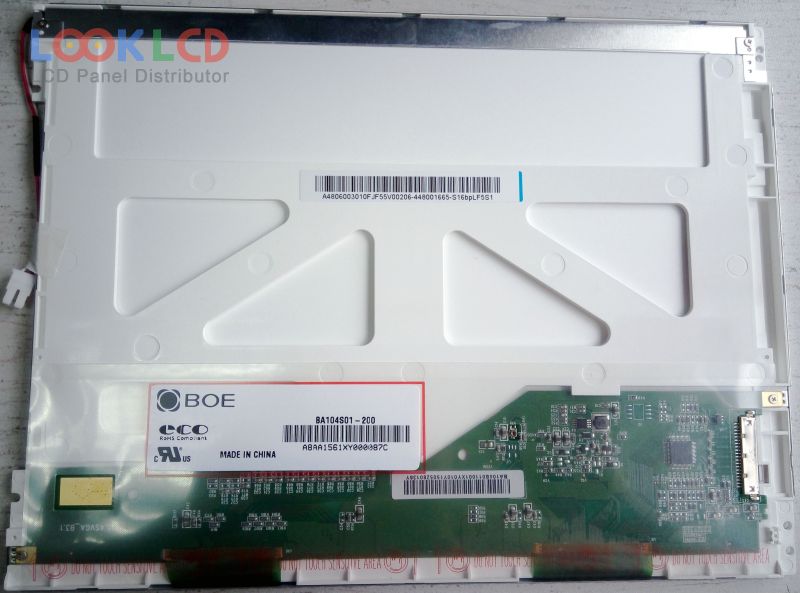

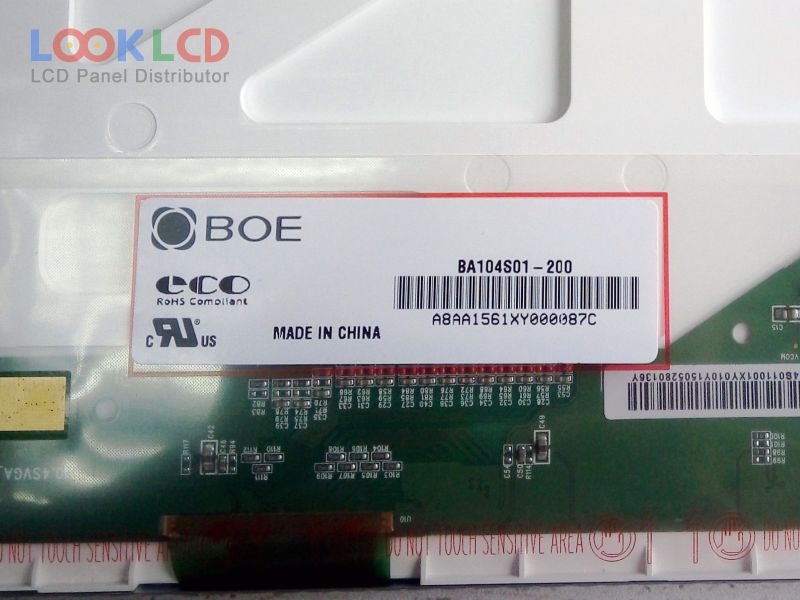

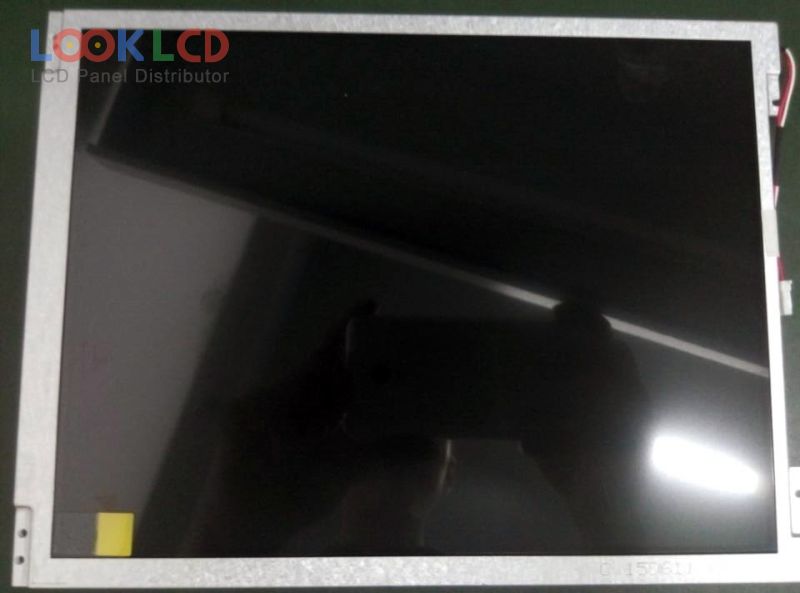

| Artikelnummer | BA104S01-200 |
| Marke | BOE |
| Größe | 10.4 |
| Anwendung | IA |
| Auflösung | 800×600 |
| Komposition | LCM |
| Helligkeit | 300 |
| CR | 800:1 |
| Farben | 262K/16.2M |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | LVDS |
| Panel-Marke | BOE |
| Panel-Modell | BA104S01-200 1 Compatible model |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 10.4 inch |
| Auflösung | 800(RGB)×600 , SVGA |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 211.2×158.4 mm |
| Umriss | 236×176.9×5.9 mm |
| Oberfläche | Clear |
| Helligkeit | 300 cd/m² (Typ.) |
| Kontrastverhältnis | 800:1 (Typ.) |
| Farben anzeigen | 262K/16.2M (6-bit + FRC), CIE193150% |
| Reaktionszeit | 30 (Typ.)(Tr+Td) |
| Blickwinkel | 70/70/60/70 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 6S4PWLEDWithout Driver |
| Signalschnittstelle | LVDS (1 ch, 6/8-bit), 20 pins |
| Eingangsspannung | 3.3V (Typ.) |
| Anwendung | IA |
