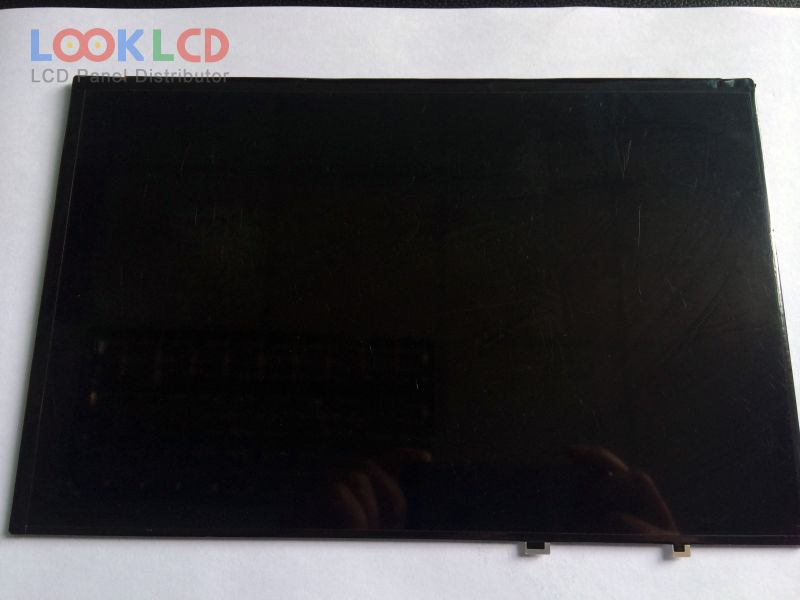

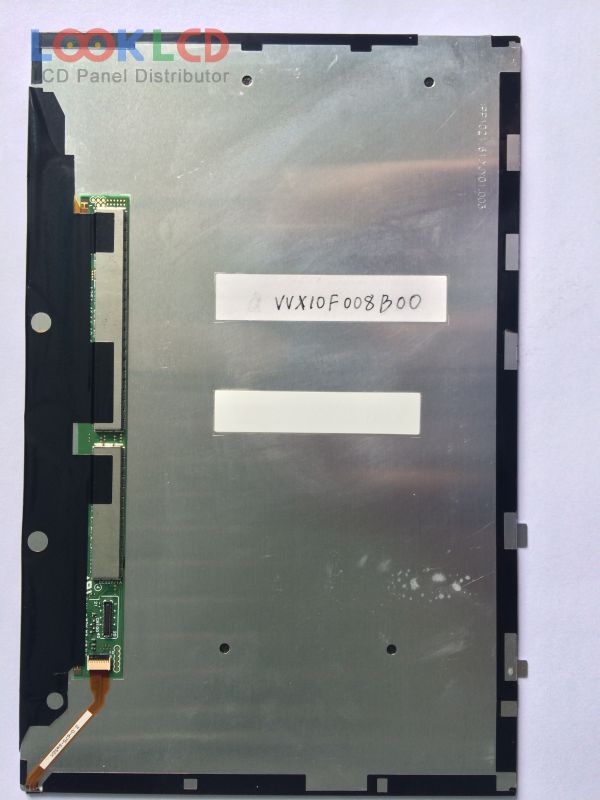

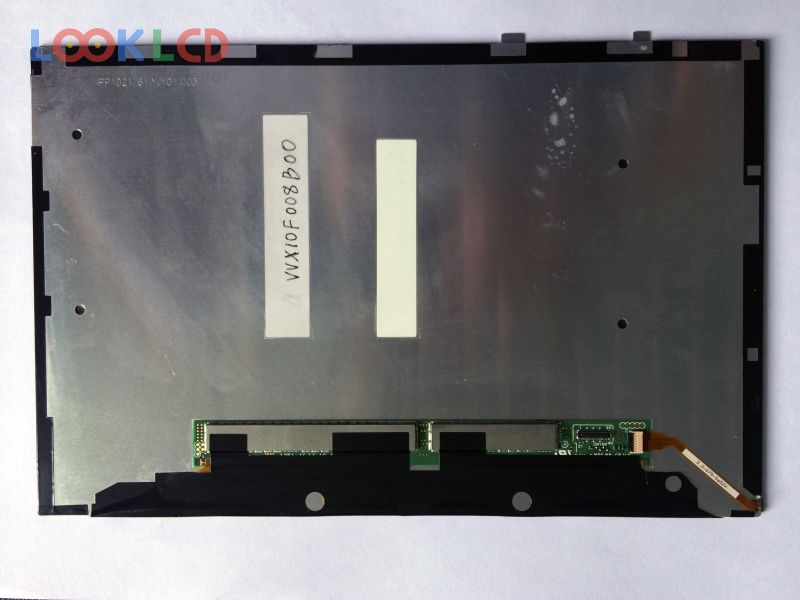

| Artikelnummer | VVX10F008B00 |
| Marke | Panasonic |
| Größe | 10.1 |
| Anwendung | PAD |
| Auflösung | 1920×1200 |
| Komposition | LCM |
| Helligkeit | 385 |
| CR | 900:1 |
| Farben | 16.7M |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | MIPI |
| Panel-Marke | Panasonic |
| Panel-Modell | VVX10F008B00 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 10.1 inch |
| Auflösung | 1920(RGB)×1200 , WUXGA |
| Anzeigemodus | IPS, Normally Black, Transmissive |
| aktiver Bereich | 217.44×135.9 mm |
| Umriss | 228.96×148.14×4.29 mm |
| Oberfläche | Hard coating |
| Helligkeit | 385 cd/m² (Typ.) |
| Kontrastverhältnis | 900:1 (Typ.) |
| Farben anzeigen | 16.7M (8-bit), CIE193174% |
| Reaktionszeit | 30 (Max.)(Tr+Td) |
| Blickwinkel | 80/80/80/80 (Min.)(CR≥100)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 8S6PWLEDWithout Driver |
| Signalschnittstelle | MIPI (4 data lanes), 40 pins |
| Eingangsspannung | 3.7V (Typ.) |
| Anwendung | PAD |
