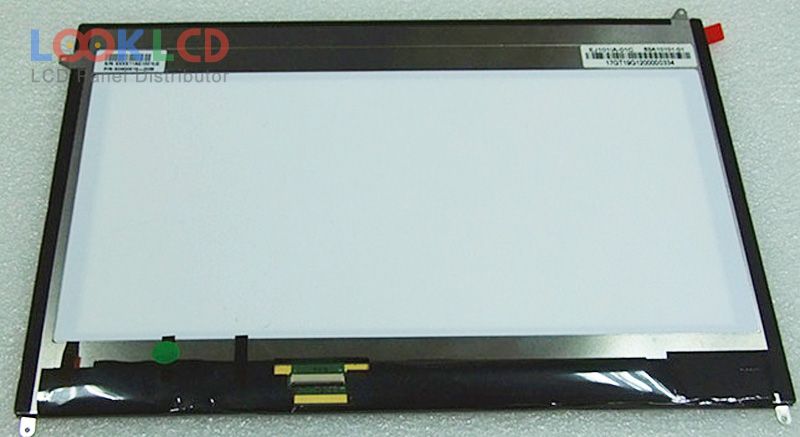

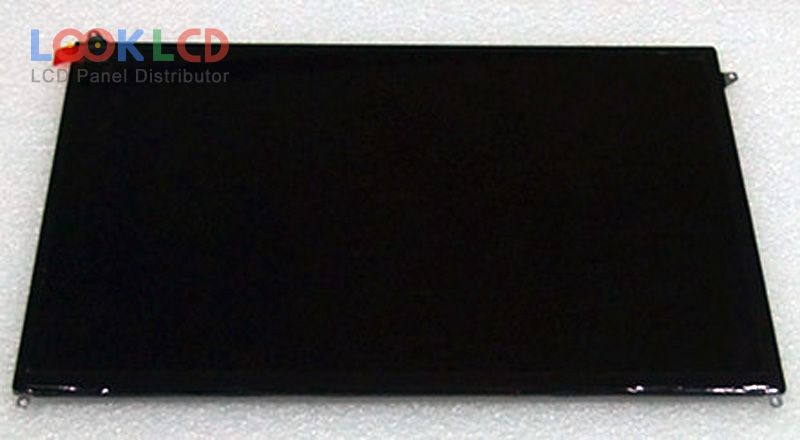

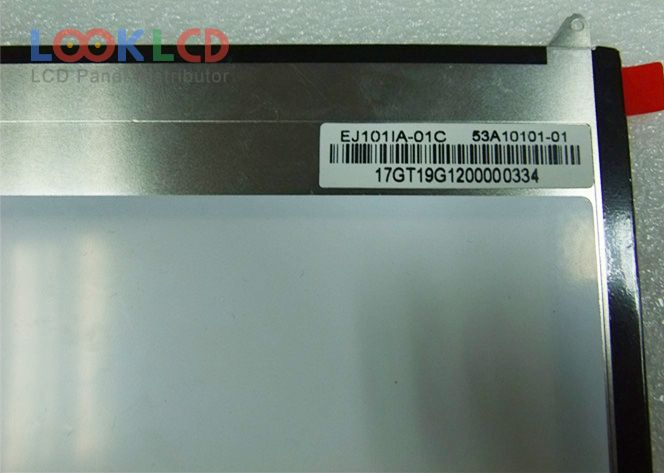

| Artikelnummer | EJ101IA-01C |
| Marke | Innolux |
| Größe | 10.1 |
| Anwendung | PAD |
| Auflösung | 1280×800 |
| Komposition | LCM |
| Helligkeit | 400 |
| CR | 800:1 |
| Farben | 16.7M |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | LVDS |
| Panel-Marke | CHIMEI INNOLUX |
| Panel-Modell | EJ101IA-01C |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 10.1 inch |
| Auflösung | 1280(RGB)×800 , WXGA |
| Anzeigemodus | IPS, Normally Black, Transmissive |
| aktiver Bereich | 216.96×135.6 mm |
| Umriss | 228.96×148.5×4.6 mm |
| Oberfläche | Hard coating, Antireflection |
| Helligkeit | 400 cd/m² (Typ.) |
| Kontrastverhältnis | 800:1 (Typ.) |
| Farben anzeigen | 16.7M (8-bit), CIE193150% |
| Reaktionszeit | 10/15 (Typ.)(Tr/Td) |
| Blickwinkel | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 6S6PWLEDEmbedded (LED Driver) |
| Signalschnittstelle | LVDS (1 ch, 8-bit), 45 pins |
| Eingangsspannung | 3.3V (Typ.) |
| Anwendung | PAD |
| B101UAN02.1 | AUO | 10.1 | 1920×1200 |
| CLAA101ND06CW | CPT | 10.1 | 1024×600 |
| CLAA101WA01 | CPT | 10.1 | 1366×768 |
| EJ101IA-01C | Innolux | 10.1 | 1280×800 |
| EJ101IA-01G | Innolux | 10.1 | 1280×800 |
| EJ101IA-02A | Innolux | 10.1 | 1280×800 |
| HSD101PWW1-B00-C11 | HannStar | 10.1 | 1280×800 |
| LQ101R1SX01A | SHARP | 10.1 | 2560×1600 |
| LTL101AL06-801 | Samsung | 10.1 | 1280×800 |
| N101BCG-GK1 | Innolux | 10.1 | 1366×768 |
| AT090TN23 | Innolux | 9.0 | 1280×800 |
| B101UAN01.7 HW1A | AUO | 10.1 | 1920×1200 |
| CLAA101FP05 XG | CPT | 10.1 | 1920×1200 |
| HSD100PXN1-A00 | HannStar | 10.0 | 1024×768 |
| HSD101PWW1-H00 | HannStar | 10.1 | 1280×800 |
| HX104X01-212 | HYDIS | 10.4 | 1024×768 |
| LQ079L1SX01 | SHARP | 7.9 | 1536×2048 |
| LQ101R1SX01A | SHARP | 10.1 | 2560×1600 |
| N101ICG-L21 Rev.C1 | Innolux | 10.1 | 1280×800 |
| TV101QUM-N00 | BOE | 10.1 | 3840×2160 |
