| Artikelnummer | V315H3-L02 |
| Marke | Innolux |
| Größe | 31.5 |
| Anwendung | LCTV |
| Auflösung | 1920×1080 |
| Komposition | LCM |
| Helligkeit | 450 |
| CR | 6000:1 |
| Farben | 16.7M |
| Hintergrundbeleuchtung | CCFL |
| Schnittstelle | LVDS |
| Panel-Marke | CHIMEI INNOLUX |

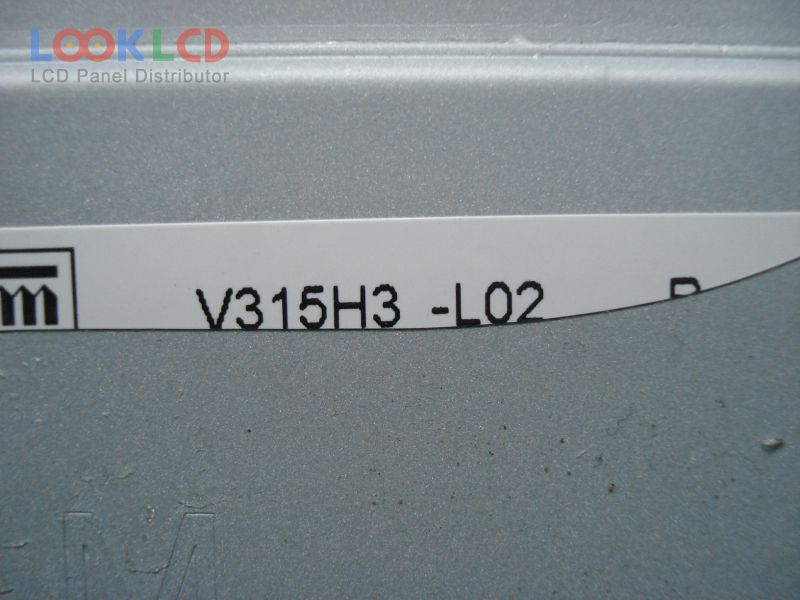

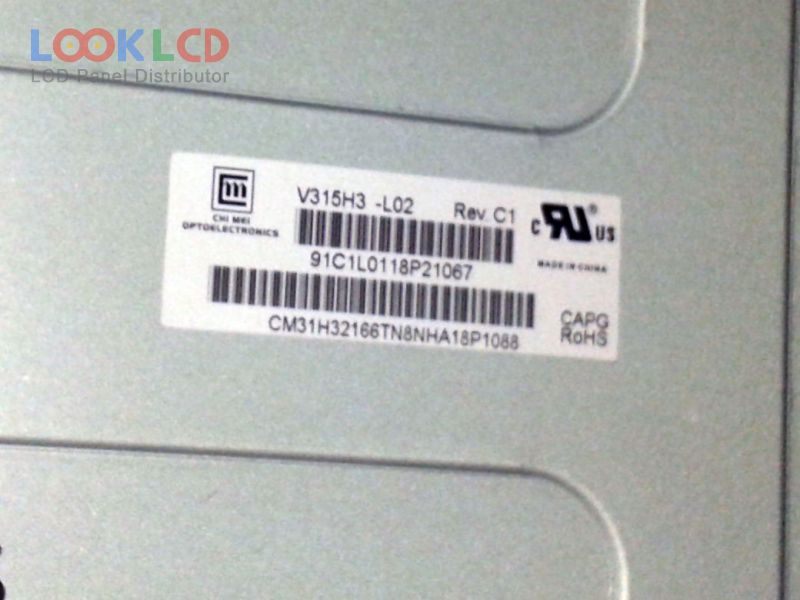

| Panel-Modell | V315H3-L02 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 31.5 inch |
| Auflösung | 1920(RGB)×1080 , FHD |
| Anzeigemodus | MVA, Normally Black, Transmissive |
| aktiver Bereich | 698.4×392.85 mm |
| Umriss | 760×450 mm |
| Oberfläche | Antiglare (Haze 11%), Hard coating (3H) |
| Helligkeit | 450 cd/m² (Typ.) |
| Kontrastverhältnis | 6000:1 (Typ.) |
| Farben anzeigen | 16.7M (8-bit), CIE193172% |
| Reaktionszeit | 8.5ms |
| Blickwinkel | 88/88/88/88 (Typ.)(CR≥20)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 4 pcsCCFLEmbedded (Balance board) |
| Signalschnittstelle | LVDS (2 ch, 8-bit), 51 pins |
| Eingangsspannung | 12.0V (Typ.) |
| Anwendung | LCTV |
