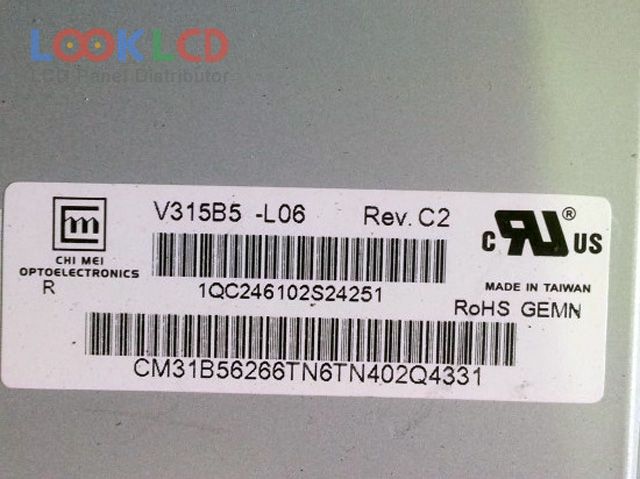

| Artikelnummer | V315B5-L06 |
| Marke | Innolux |
| Größe | 31.5 |
| Anwendung | LCTV |
| Auflösung | 1366×768 |
| Komposition | LCM |
| Helligkeit | 450 |
| CR | 3500:1 |
| Farben | 16.7M |
| Hintergrundbeleuchtung | CCFL |
| Schnittstelle | LVDS |
| Panel-Marke | CMO |
| Panel-Modell | V315B5-L06 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 31.5 inch |
| Auflösung | 1366(RGB)×768 , WXGA |
| Anzeigemodus | MVA, Normally Black, Transmissive |
| aktiver Bereich | 697.685×392.256 mm |
| Umriss | 760×450 mm |
| Oberfläche | Antiglare (Haze 11%), Hard coating (3H) |
| Helligkeit | 450 cd/m² (Typ.) |
| Kontrastverhältnis | 3500:1 (Typ.) |
| Farben anzeigen | 16.7M (8-bit), CIE193172% |
| Reaktionszeit | 8.5 (Typ.)(G to G) |
| Blickwinkel | 88/88/88/88 (Typ.)(CR≥20)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 4 pcsCCFLEmbedded (Inverter) |
| Signalschnittstelle | LVDS (1 ch, 8-bit), 30 pins |
| Eingangsspannung | 12.0V (Typ.) |
| Anwendung | LCTV |
