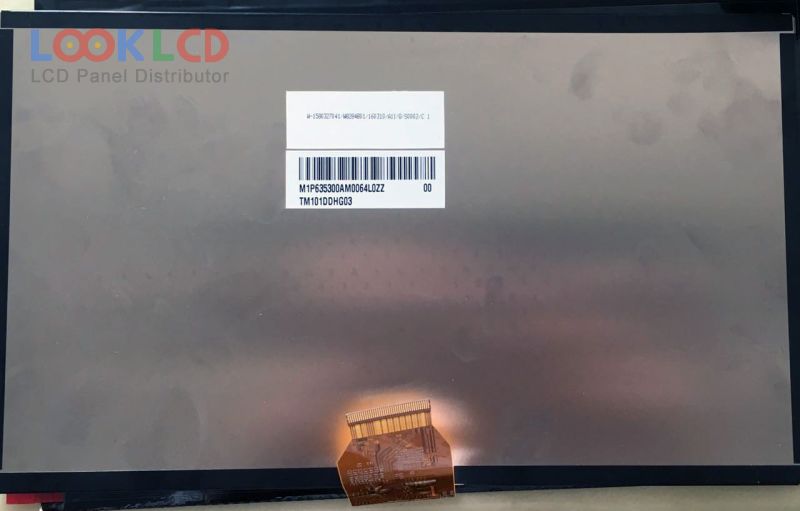

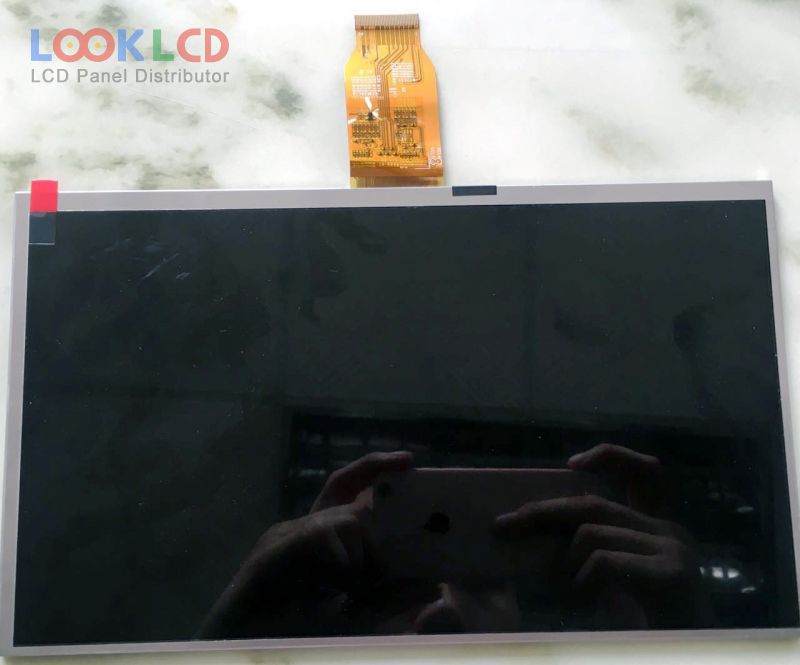

| Artikelnummer | TM101DDHG03 |
| Marke | Tianma |
| Größe | 10.1 |
| Anwendung | IA |
| Auflösung | 1024×600 |
| Komposition | LCM |
| Helligkeit | 300 |
| CR | 800:1 |
| Farben | 262K/16.7M |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | LVDS |
| Panel-Marke | TIANMA |
| Panel-Modell | TM101DDHG03 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 10.1 inch |
| Auflösung | 1024(RGB)×600 , WSVGA |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 222.72×125.28 mm |
| Umriss | 233×137×3.2 mm |
| Oberfläche | Antiglare, Hard coating (3H) |
| Helligkeit | 300 cd/m² (Typ.) |
| Kontrastverhältnis | 800:1 (Typ.) |
| Farben anzeigen | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193150% |
| Reaktionszeit | 7/9 (Typ.)(Tr/Td) |
| Blickwinkel | 80/80/75/80 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 3S10PWLEDEmbedded (LED Driver) |
| Signalschnittstelle | LVDS (1 ch, 6/8-bit), 41 pins |
| Eingangsspannung | 3.3/11.02/21.14/-7V (Typ.)(VDD/AVDD/VGH/VGL) |
| Anwendung | IA |
