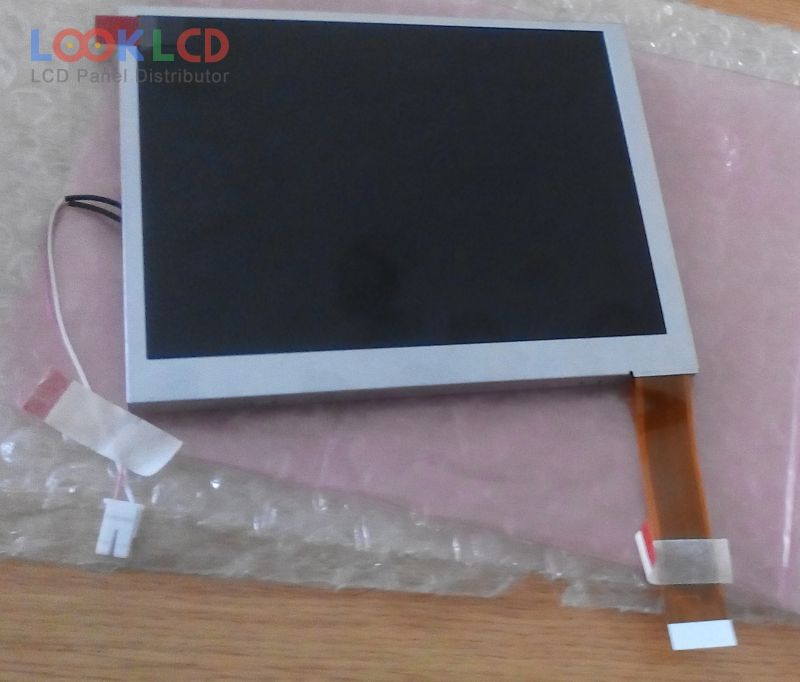

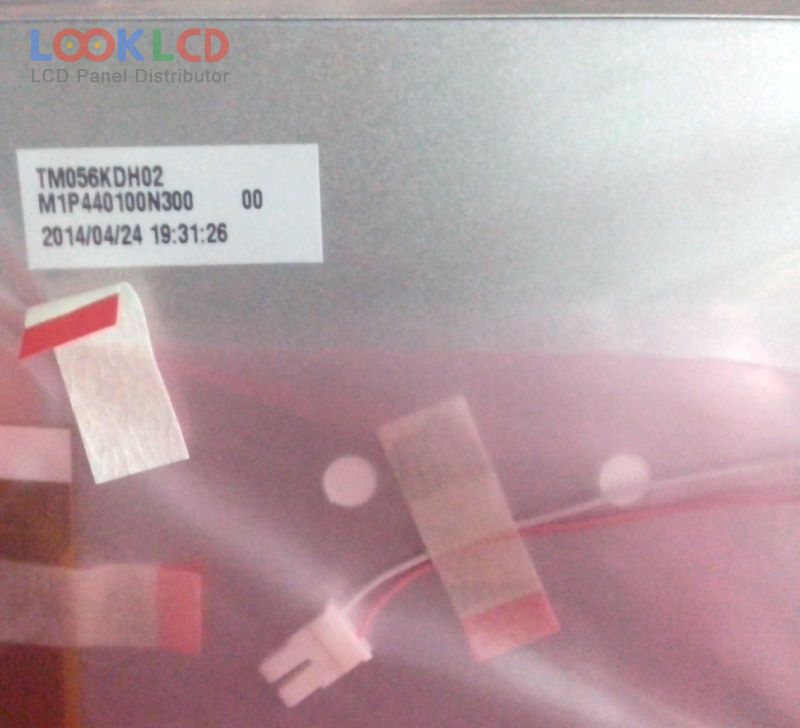

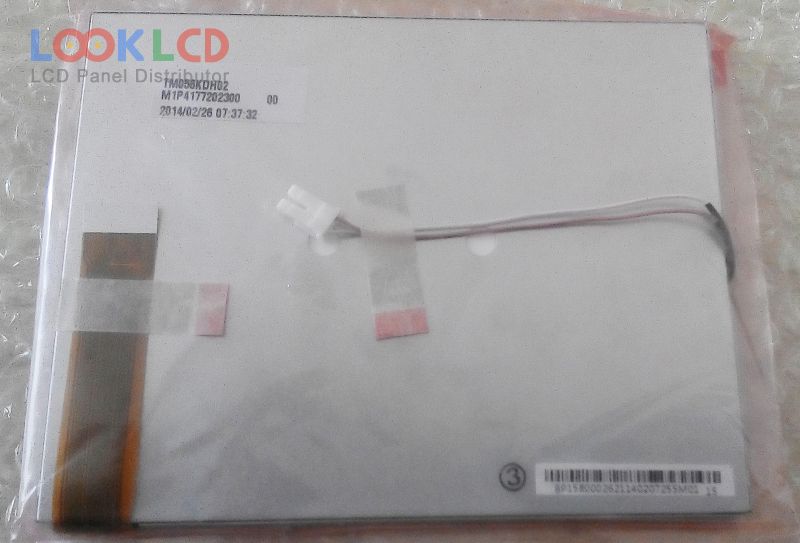

| Artikelnummer | TM056KDH02 |
| Marke | Tianma |
| Größe | 5.6 |
| Anwendung | VDP |
| Auflösung | 320×234 |
| Komposition | LCM |
| Helligkeit | 330 |
| CR | 300:1 |
| Farben | Full color |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | Analog |
| Panel-Marke | TIANMA |
| Panel-Modell | TM056KDH02 1 Compatible model |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 5.6 inch |
| Auflösung | 320(RGB)×234 |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 113.28×84.708 mm |
| Umriss | 126.5×100 mm |
| Oberfläche | Antiglare |
| Helligkeit | 330 cd/m² (Typ.) |
| Kontrastverhältnis | 300:1 (Typ.) |
| Farben anzeigen | Full color , CIE193150% |
| Reaktionszeit | 25 (Typ.)(Tr+Td) |
| Blickwinkel | 65/65/45/65 (Typ.)(CR≥10)(L/R/U/D) |
| Lampentyp | 2S7PWLEDWithout Driver |
| Signalschnittstelle | TFT Specific Analog RGB, 26 pins |
| Eingangsspannung | 5/5/15/-10V (Typ.)(VCC/AVDD/VGH/VGL) |
| Anwendung | VDP |
