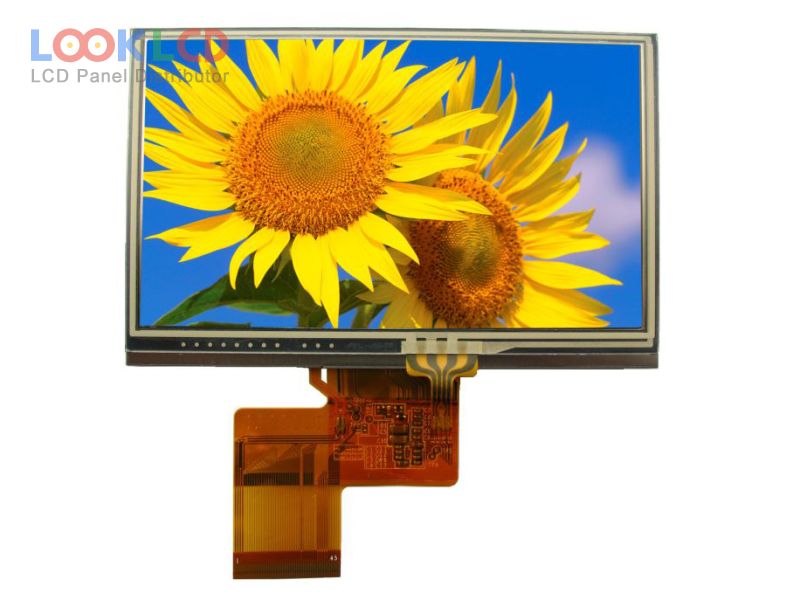

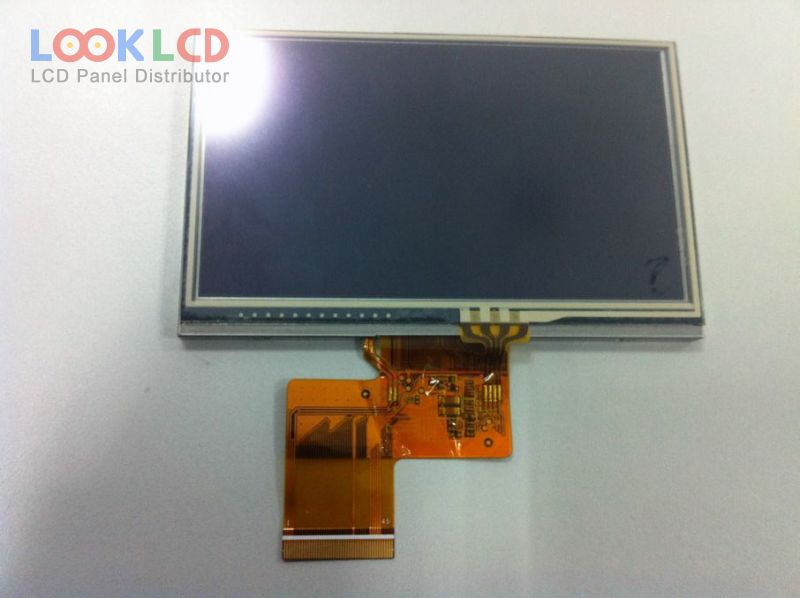

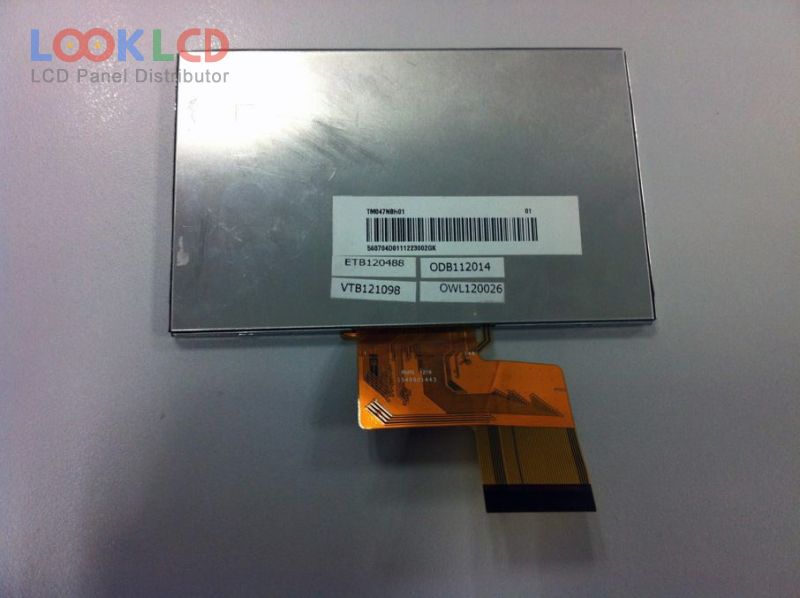

| Artikelnummer | TM047NBH01 |
| Marke | Tianma |
| Größe | 4.7 |
| Anwendung | PND |
| Auflösung | 480×272 |
| Komposition | LCM |
| Helligkeit | 280 |
| CR | 500:1 |
| Farben | 16.7M |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | TTL |
| Panel-Marke | TIANMA |
| Panel-Modell | TM047NBH01 1 Compatible model |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 4.7 inch |
| Auflösung | 480(RGB)×272 , WQVGA |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 103.68×58.752 mm |
| Umriss | 114.3×72.5 mm |
| Oberfläche | Antiglare, Hard coating (3H) |
| Helligkeit | 280 cd/m² (Typ.) |
| Kontrastverhältnis | 500:1 (Typ.) |
| Farben anzeigen | 16.7M (8-bit), CIE193150% |
| Reaktionszeit | 25 (Typ.)(Tr+Td) |
| Blickwinkel | 70/70/60/70 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 5S2PWLEDWithout Driver |
| Signalschnittstelle | Parallel RGB (1 ch, 8-bit) + SPI, 45 pins |
| Eingangsspannung | 3.3V (Typ.) |
| Anwendung | PND |
