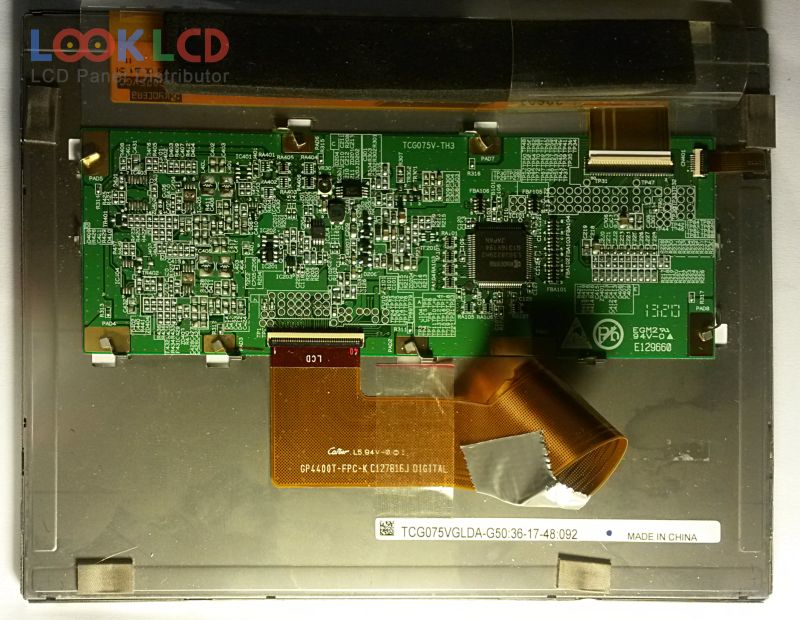

| Artikelnummer | TCG075VGLDA-G50 |
| Marke | Kyocera |
| Größe | 7.5 |
| Anwendung | IA |
| Auflösung | 640×480 |
| Komposition | LCM |
| Helligkeit | 400 |
| CR | 500:1 |
| Farben | 262K |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | TTL |
| Panel-Marke | Kyocera |
| Panel-Modell | TCG075VGLDA-G50 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 7.5 inch |
| Auflösung | 640(RGB)×480 , VGA |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 151.68×113.76 mm |
| Umriss | 173×133×6.85 mm |
| Oberfläche | Glare (Haze 0%) |
| Helligkeit | 400 cd/m² (Typ.) |
| Kontrastverhältnis | 500:1 (Typ.) |
| Farben anzeigen | 262K (6-bit) |
| Reaktionszeit | 15/20 (Typ.)(Tr/Td) |
| Blickwinkel | 80/80/80/80 (Typ.)(CR≥5)(L/R/U/D) |
| Lampentyp | 4 stringsWLEDWithout Driver |
| Signalschnittstelle | Parallel RGB (1 ch, 6-bit), 40 pins |
| Eingangsspannung | 3.3V (Typ.) |
| Anwendung | IA |
