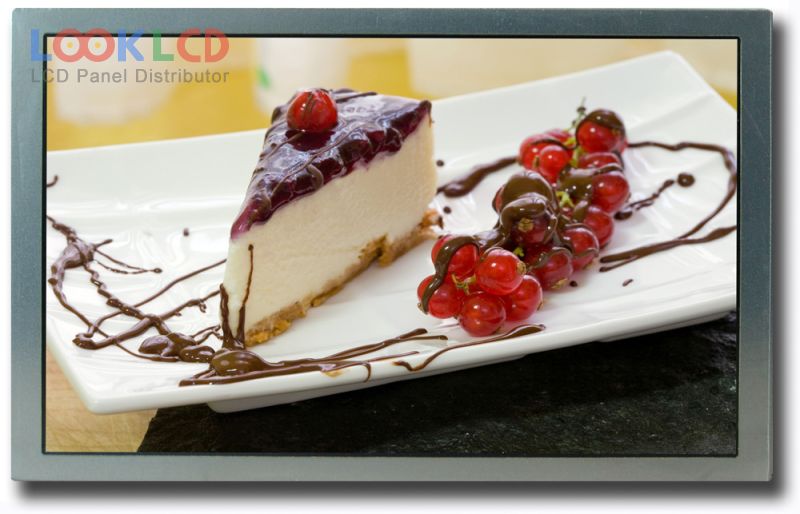

| Artikelnummer | T-55562D090J-LW-A-AAN |
| Marke | Kyocera |
| Größe | 9.0 |
| Anwendung | IA |
| Auflösung | 800×480 |
| Komposition | LCM |
| Helligkeit | 800 |
| CR | 800:1 |
| Farben | 262K/16.7M |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | LVDS |
| Panel-Marke | OPTREX |
| Panel-Modell | T-55562D090J-LW-A-AAN 1 Compatible model |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 9.0 inch |
| Auflösung | 800(RGB)×480 , WVGA |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 196.8×118.08 mm |
| Umriss | 219×136.2×10 mm |
| Oberfläche | Antiglare, Hard coating (3H) |
| Helligkeit | 800 cd/m² (Typ.) |
| Kontrastverhältnis | 800:1 (Typ.) |
| Farben anzeigen | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193140% |
| Reaktionszeit | 4/12 (Typ.)(Tr/Td) |
| Blickwinkel | 80/80/80/60 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 7S2PWLEDWithout Driver |
| Signalschnittstelle | LVDS (1 ch, 6/8-bit), 20 pins |
| Eingangsspannung | 3.3V (Typ.) |
| Anwendung | IA |
