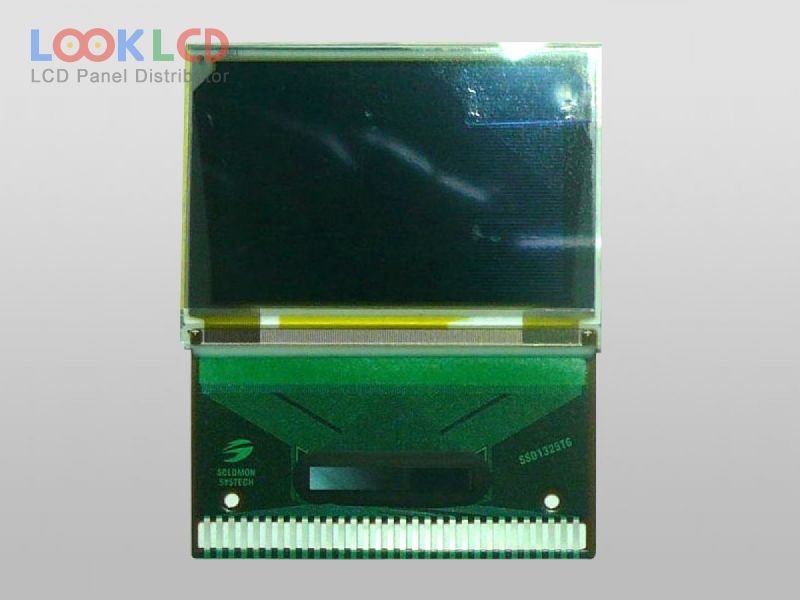

| Artikelnummer | RGS11096064YW000 |
| Marke | RiTdisplay |
| Größe | 1.1 |
| Anwendung | IA |
| Auflösung | 96×64 |
| Komposition | OLED |
| Helligkeit | 100 |
| CR | 2000:1 |
| Farben | Mono(Yellow) |
| Hintergrundbeleuchtung | self |
| Schnittstelle | CPU/SPI |
| Panel-Marke | RiTdisplay |
| Panel-Modell | RGS11096064YW000 |
| Plattentyp | PM-OLED , OLED |
| Panelgröße | 1.1 inch |
| Auflösung | 96×64 |
| aktiver Bereich | 23.49×15.65 mm |
| Umriss | 29×21×1.71 mm |
| Oberfläche | Antiglare |
| Helligkeit | 100 cd/m² (Typ.) |
| Kontrastverhältnis | 2000 : 1 (Min.) |
| Farben anzeigen | Mono(Yellow) |
| Blickwinkel | 80/80/80/80 (Min.)(CR≥10)(L/R/U/D) |
| Frequenz | 105Hz |
| Treiber-IC | TAB Built-in SSD1325 |
| Signalschnittstelle | 8-bit 6800/8080 parallel, SPI, 31 pins |
| Eingangsspannung | 12/2.7V (Typ.)(VCC/VDD) |
| Anwendung | IA |
