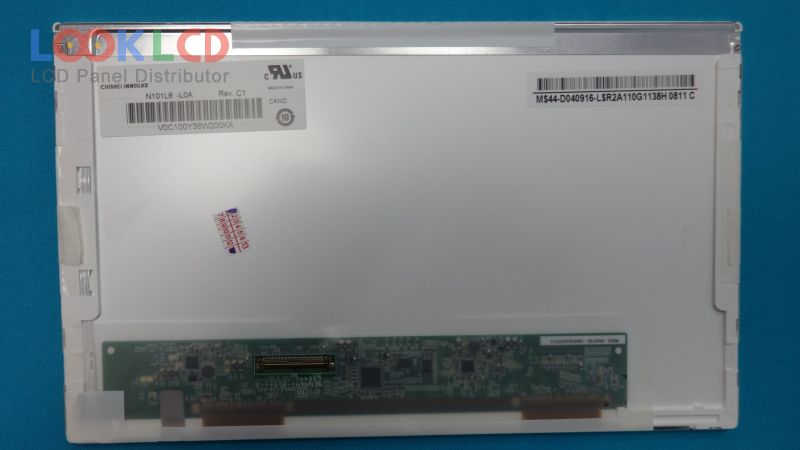

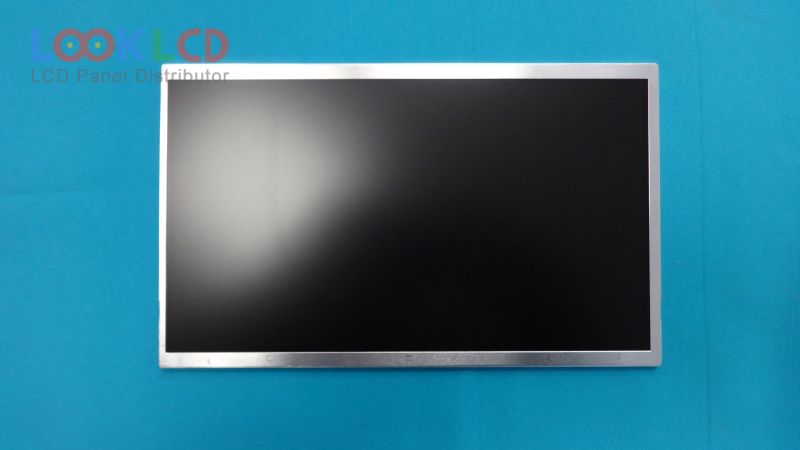

| Artikelnummer | N101L6-L0A |
| Marke | Innolux |
| Größe | 10.1 |
| Anwendung | NOPC |
| Auflösung | 1024×600 |
| Komposition | LCM |
| Helligkeit | 200 |
| CR | 500:1 |
| Farben | 262K |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | LVDS |
| Panel-Marke | CMO |

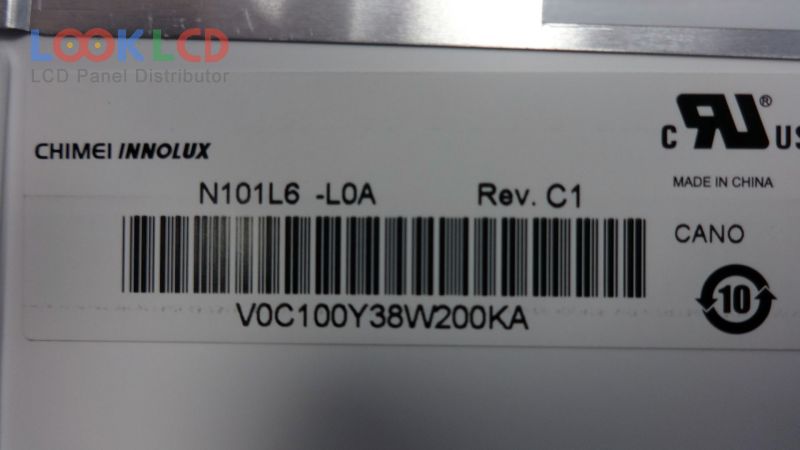

| Panel-Modell | N101L6-L0A 9 Compatible model |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 10.1 inch |
| Auflösung | 1024(RGB)×600 , WSVGA |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 222.72×125.28 mm |
| Umriss | 235×143×5.2 mm |
| Formstil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Oberfläche | Antiglare, Hard coating (3H) |
| Helligkeit | 200 cd/m² (Typ.) |
| Kontrastverhältnis | 500:1 (Typ.) |
| Farben anzeigen | 262K (6-bit) |
| Reaktionszeit | 3/7 (Typ.)(Tr/Td) |
| Blickwinkel | 45/45/20/45 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 8S3PWLEDEmbedded (LED Driver) |
| Signalschnittstelle | LVDS (1 ch, 6-bit), 40 pins |
| Eingangsspannung | 3.3V (Typ.) |
| Anwendung | NOPC |
| B101EW01 V0 | AUO | 10.1 | 1280×720 |
| LP101WS1-TLA1 | LG Display | 10.1 | 1024×576 |
| N101L6-L01 | Innolux | 10.1 | 1024×600 |
| N101L6-L02 | Innolux | 10.1 | 1024×600 |
| N101L6-L0A | Innolux | 10.1 | 1024×600 |
| N101L6-L0B | Innolux | 10.1 | 1024×600 |
| N101L6-L0C | Innolux | 10.1 | 1024×600 |
| N101L6-L0D | Innolux | 10.1 | 1024×600 |
| N101LGE-L11 | Innolux | 10.1 | 1024×600 |
| N101LGE-L41 | Innolux | 10.1 | 1024×600 |
| A089SW01 V1 | AUO | 8.9 | 1024×600 |
| B101AW01 V2 HW5A | AUO | 10.1 | 1024×576 |
| B116XW05 V001 | AUO | 11.6 | 1366×768 |
| CLAA101NC05 | CPT | 10.1 | 1024×600 |
| HSD100IFW4-A00 | HannStar | 10.1 | 1024×600 |
| LTN101NT02-W05 | Samsung | 10.1 | 1024×600 |
| LTN116AT07-B01 | Samsung | 11.6 | 1366×768 |
| N101L6-L0C | Innolux | 10.1 | 1024×600 |
| N101L6-L0D | Innolux | 10.1 | 1024×600 |
| N116B6-L04 | Innolux | 11.6 | 1366×768 |
