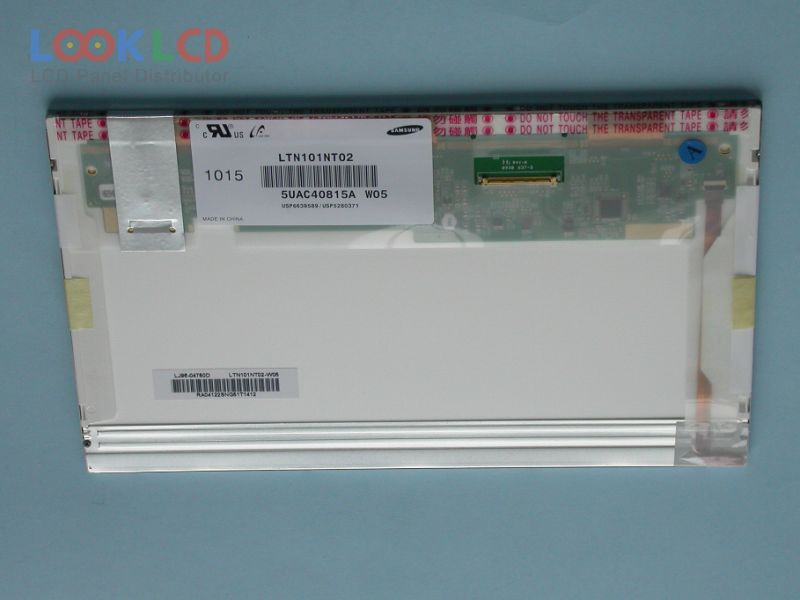

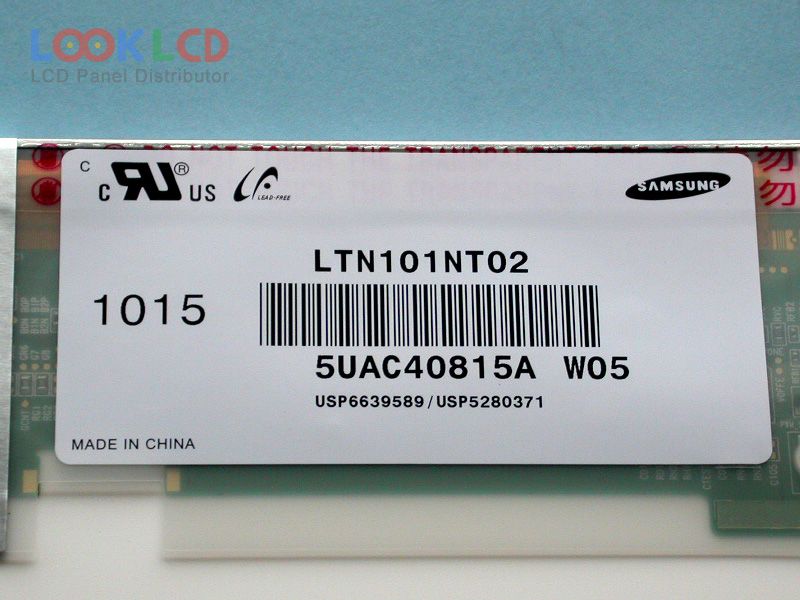

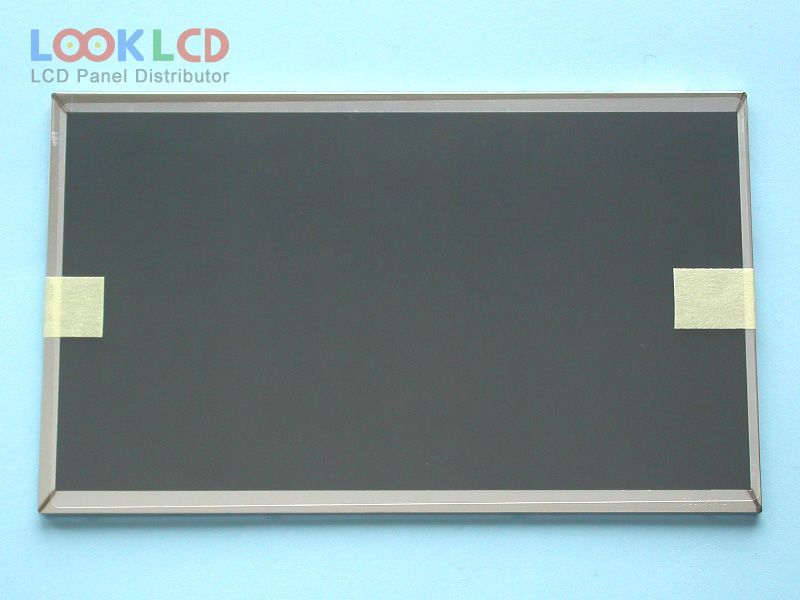

| Artikelnummer | LTN101NT02-W05 |
| Marke | Samsung |
| Größe | 10.1 |
| Anwendung | NOPC |
| Auflösung | 1024×600 |
| Komposition | LCM |
| Helligkeit | |
| CR | |
| Farben | 262K |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | LVDS |
| Panel-Marke | SAMSUNG |
| Panel-Modell | LTN101NT02-W05 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 10.1 inch |
| Auflösung | 1024(RGB)×600 , WSVGA |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 222.72×125.28 mm |
| Formstil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Oberfläche | |
| Helligkeit | |
| Kontrastverhältnis | |
| Farben anzeigen | 262K (6-bit) |
| Reaktionszeit | |
| Blickwinkel | |
| Frequenz | 60Hz |
| Lampentyp | WLED |
| Signalschnittstelle | LVDS (1 ch, 6-bit) |
| rohs: | |
| Anwendung | NOPC |
| AT101WSM-NW0-3800(3900) | BOE | 10.1 | 1024×600 |
| LTN101NT02-B01 | Samsung | 10.1 | 1024×600 |
| LTN101NT02-L01 | Samsung | 10.1 | 1024×600 |
| LTN101NT02-W05 | Samsung | 10.1 | 1024×600 |
| LTN101NT05-T01 | Samsung | 10.1 | 1024×600 |
| LTN101NT05-U03 | Samsung | 10.1 | 1024×600 |
| LTN101NT06-W01 | Samsung | 10.1 | 1024×600 |
| LTN101NT06-W03 | Samsung | 10.1 | 1024×600 |
| LTN101NT07-W01 | Samsung | 10.1 | 1024×600 |
| LTN101NT08-T01 | Samsung | 10.1 | 1024×600 |
| B089AW01 V3 | AUO | 8.9 | 1024×600 |
| B101AW01 V2 HW5A | AUO | 10.1 | 1024×576 |
| BT101IW01 V.0 | Innolux | 10.1 | 1024×600 |
| CLAA090NA02CW | CPT | 9.0 | 1024×600 |
| CLAA101NB03A | CPT | 10.1 | 1024×600 |
| LP101WSA-TLB1 | LG Display | 10.1 | 1024×600 |
| N089A1-L01 | Innolux | 8.9 | 1280×768 |
| N089L6-L02 | Innolux | 8.9 | 1024×600 |
| N101L6-L0C | Innolux | 10.1 | 1024×600 |
| N116B6-L04 | Innolux | 11.6 | 1366×768 |
